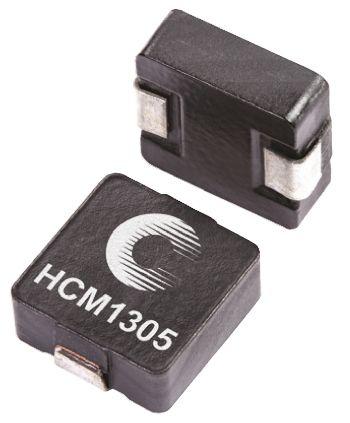

This is HCM1305 Series Type 1305 Shielded Wire-wound SMD Inductor with a Composite Iron Powder Core 140 nH manufactured by Cooper Bussmann. The manufacturer part number is HCM1305-R22-R. It allows up to 720µω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 13.3 x 12.2 x 5mm. Shielding Options yes. The product hcm1305, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. Its accurate length is 13.3mm. In addition, the height is 5mm. While it carries 110a of maximum DC current. The product comes in 12.2mm depth. The core is manufactured from highly durable and reliable composite iron powder materials. The product has a 140 nh inductance value. It provides 5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 1305.
HCM1305 Series High Current Power Inductors Data Sheet(Technical Reference)
