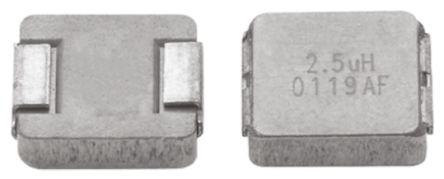

Vishay IHLP2525AH-01 Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 2.5 μH ±20%

IHLP2525AHER2R5M01 Vishay IHLP2525AH-01 Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 2.5 μH ±20%
Vishay

Product Information

Maximum DC Resistance:
52.4mΩ
Inductor Construction:
Wire-Wound
Dimensions:
6.86 x 6.47 x 1.8mm
Shielded:
Yes
Series:
IHLP2525AH-01
Length:
6.86mm
Height:
1.8mm
Maximum DC Current:
3.5A
Depth:
6.47mm
Core Material:
Metal Composite
Inductance:
2.5 μH
Maximum Self Resonant Frequency:
5MHz
Maximum Operating Temperature:
+125°C
Tolerance:
±20%
Minimum Operating Temperature:
-55°C
Package/Case:
2525
RoHs Compliant
Checking for live stock

This is IHLP2525AH-01 Series Type 2525 Shielded Wire-wound SMD Inductor with a Metal Composite Core 2.5 μH ±20% manufactured by Vishay. The manufacturer part number is IHLP2525AHER2R5M01. It allows up to 52.4mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 6.86 x 6.47 x 1.8mm. Shielding Options yes. The product ihlp2525ah-01, is a highly preferred choice for users. Its accurate length is 6.86mm. In addition, the height is 1.8mm. While it carries 3.5a of maximum DC current. The product comes in 6.47mm depth. The core is manufactured from highly durable and reliable metal composite materials. The product has a 2.5 μh inductance value. It provides 5mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -55°c. Concerning its package and casing, it is 2525.
