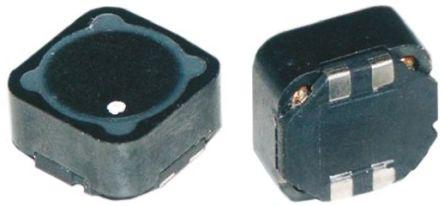

Wurth WE-DD Series Type 1260 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Dual 6.8A Idc

Enrgtech Part No: ET14016880
|
Manufacturer Part No:
744874006
|
Manufacturer: Wurth Elektronik

744874006 Wurth WE-DD Series Type 1260 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Dual 6.8A Idc

Product Information

Maximum DC Resistance:

32mΩ

Inductor Construction:

Dual

Dimensions:

12.5 x 12.5 x 6.5mm

Shielded:

Yes

Series:

WE-DD

Length:

12.5mm

Height:

6.5mm

Maximum DC Current:

6.8A

Depth:

12.5mm

Core Material:

Ferrite

Inductance:

6.8 μH

Maximum Self Resonant Frequency:

33MHz

Checking for live stock

This is Wurth WE-DD Series Type 1260 Shielded Wire-wound SMD Inductor with a Ferrite Core 6.8 μH ±20% Dual 6.8A Idc manufactured by Wurth Elektronik. The manufacturer part number is 744874006. It allows up to 32mω maximum DC resistance. The inductor is designed as dual inductor. The given dimensions of the product include 12.5 x 12.5 x 6.5mm. Shielding Options yes. The product we-dd, is a highly preferred choice for users. Its accurate length is 12.5mm. In addition, the height is 6.5mm. While it carries 6.8a of maximum DC current. The product comes in 12.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 6.8 μh inductance value. It provides 33mhz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 1260.

8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)

Designing Low-Cost, Multiple Output DC-DC Converters - Application Note(Technical Reference)

SMD Coupled Inductor WE-DD L 2x6.8uH(Technical Reference)
