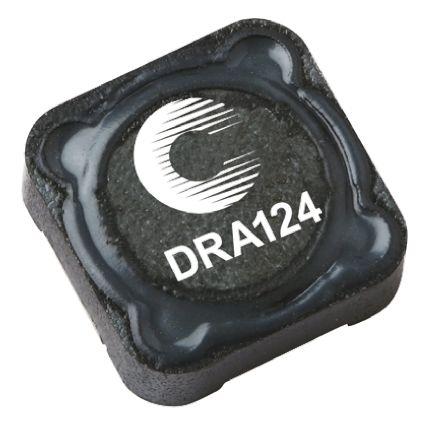

Cooper Bussmann DRA Series Type 0124 Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound

DRA124-470-R Cooper Bussmann DRA Series Type 0124 Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound
Cooper Bussmann

Product Information

Maximum DC Resistance:
134mΩ
Inductor Construction:
Wire-Wound
Dimensions:
12.5 x 12.5 x 4.5mm
Shielded:
Yes
Series:
DRA
Length:
12.5mm
Height:
4.5mm
Maximum DC Current:
2.91A
Depth:
12.5mm
Core Material:
Ferrite
Inductance:
47 μH
Maximum Self Resonant Frequency:
100kHz
Maximum Operating Temperature:
+165°C
Tolerance:
±20%
Minimum Operating Temperature:
-40°C
Package/Case:
0124
RoHs Compliant
Checking for live stock

This is DRA Series Type 0124 Shielded Wire-wound SMD Inductor with a Ferrite Core 47 μH ±20% Wire-Wound manufactured by Cooper Bussmann. The manufacturer part number is DRA124-470-R. It allows up to 134mω maximum DC resistance. The inductor is designed as wire-wound inductor. The given dimensions of the product include 12.5 x 12.5 x 4.5mm. Shielding Options yes. The product dra, is a highly preferred choice for users. Its accurate length is 12.5mm. In addition, the height is 4.5mm. While it carries 2.91a of maximum DC current. The product comes in 12.5mm depth. The core is manufactured from highly durable and reliable ferrite materials. The product has a 47 μh inductance value. It provides 100khz of maximum self-resonant frequency. It has a maximum operating temperature of +165°c. It features ±20% of tolerance value. Whereas, the minimum operating temperature of the product is -40°c. Concerning its package and casing, it is 0124.

pdf icon
DRA Series High Power Density, High Efficiency, Shielded Inductors Data Sheet(Technical Reference)
pdf icon
SPICE Model(Technical Reference)
pdf icon
Transition to Bussmann Series(Technical Reference)
