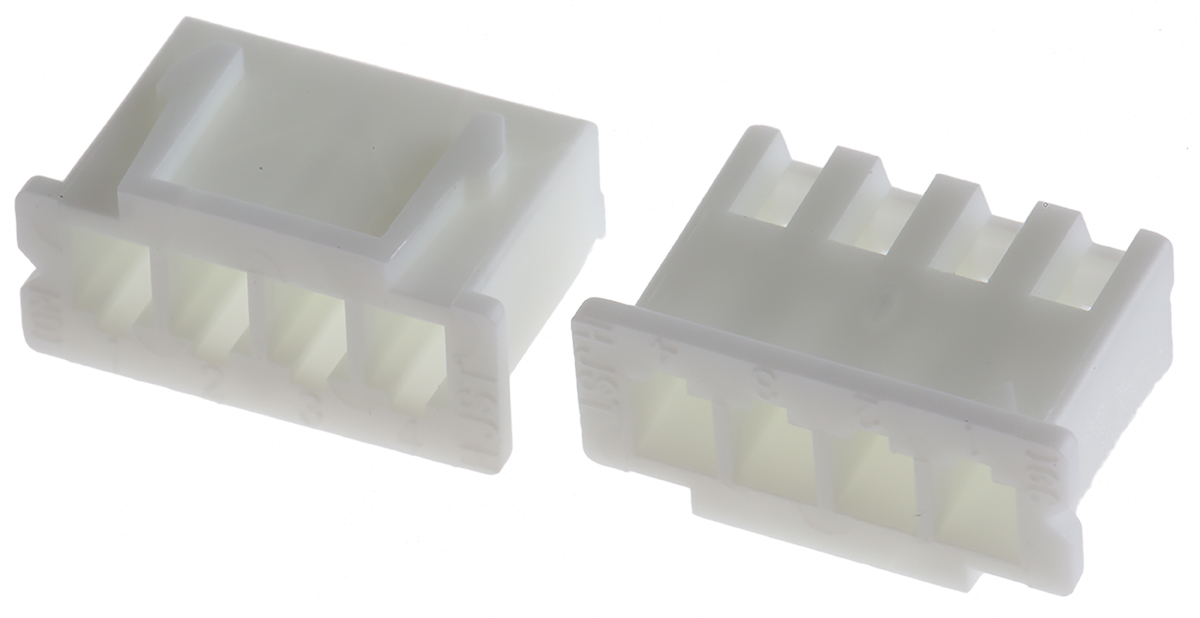

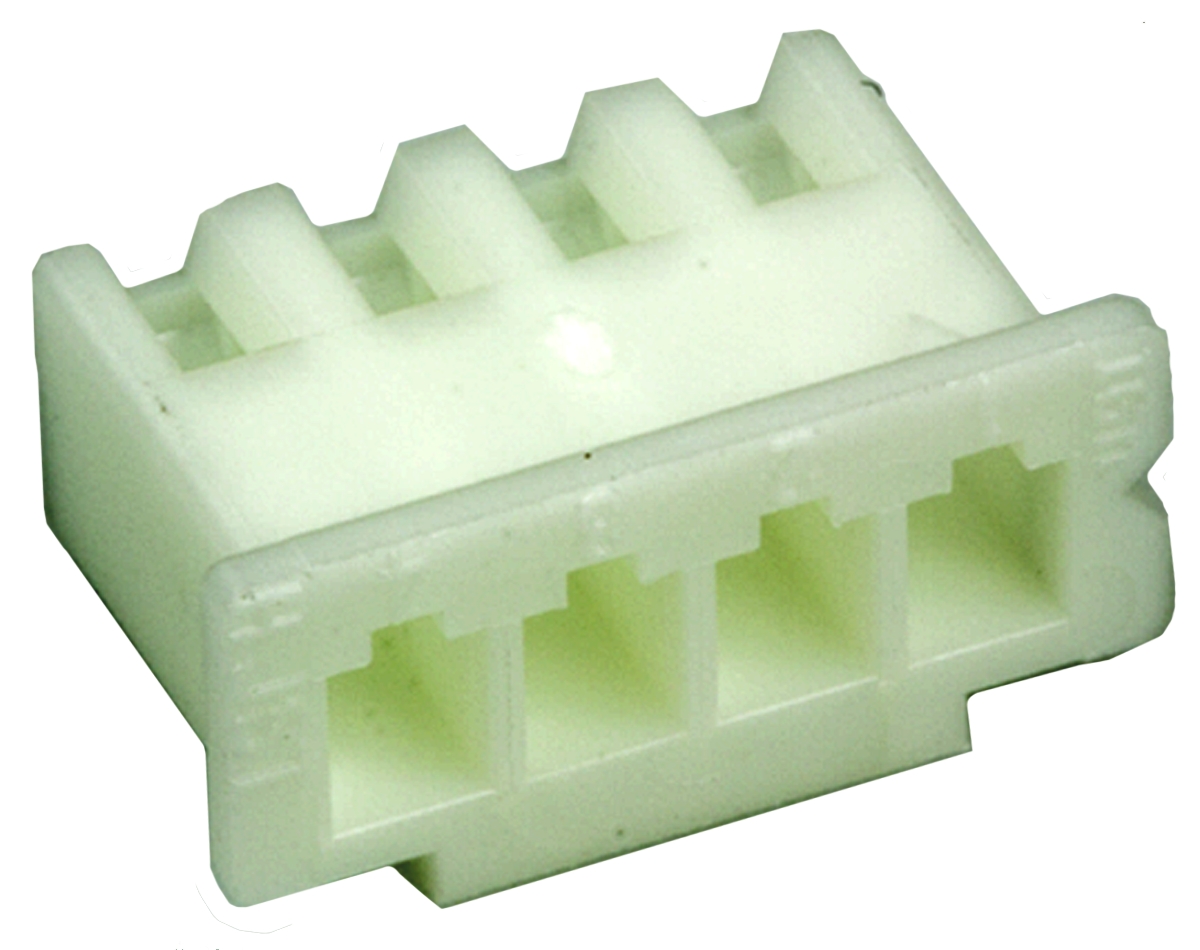

JST XHP-4, 2.5mm Pitch, 4 Way, 1 Row Female Connector Housing

Enrgtech Part No: ET16759310
|
Manufacturer Part No:
XHP-4
|
Manufacturer: JST

XHP-4 JST , 2.5mm Pitch, 4 Way, 1 Row Female Connector Housing

(0)

Product Information

Mounting Type:

Cable Mount

Gender:

Female

Body Orientation:

Straight

Pitch:

2.5mm

Housing Material:

Polyamide

Width:

5.7mm

Length:

12.3mm

Number of Rows:

Series:

XHP

For Use With:

XH Series Dis-Connectable Crimp Style Connector

Number of Contacts:

Checking for live stock

The JST XHP-4 is a compact, reliable female connector housing for various electrical and electronic applications. With a pitch of 2.5mm and a 4-way, single-row configuration, it is known for its versatility and ease of use. This connector housing provides secure and dependable connections, contributing to the overall reliability of electronic systems and devices.

Compact and Space-Saving Design

The XHP-4 features a compact design that helps conserve space in electronic devices and applications. Its small form makes it suitable for tight spaces where larger connectors may not fit.

Core Features and Benefits of the Female Connector Housing

The 2.5mm pitch of the XHP-4 connector housing refers to the distance between the centerlines of adjacent pins or contacts.
The XHP-4 is configured with 4 positions or slots for connecting wires or pins.
The connector housing is designed with a single-row layout, so the pins or contacts are aligned straight.
The XHP-4 connector housing is engineered for secure and reliable connections.
It provides a firm grip on the connected wires or pins, reducing the risk of accidental disconnections due to vibrations or movement.

Versatile Applications of the JST XHP-4, 2.5mm Pitch, 4 Way, 1 Row Female Connector Housing

The JST XHP-4 female connector housing is a versatile and reliable component designed for various electrical and electronic applications, including:

Electronics Manufacturing: Used in PCB (Printed Circuit Board) assemblies and wire harnesses.
Automotive: Used in automotive wiring harnesses and electrical systems.
Consumer Electronics is found in a wide range of devices such as laptops, smartphones, and televisions.
Industrial Machinery: Used for interconnecting components and sensors in industrial equipment.
Robotics: Utilised for connecting sensors, actuators, and control systems in robotic applications.

XH Series 2.5mm Pitch Wire-to-Board Connectors - Catalogue Pages(Technical Reference)
