JST JWPF Series 2mm Pitch 4 Way 1 Row Female Straight PCB Connector Housing

JST

Product Information

Number of Contacts:
4
Orientation:
Straight
Series:
JWPF
Housing Material:
Polybutylene Terephthalate
Width:
8.4 mm
Length:
11mm
Number of Rows:
1
Standards/Approvals:
No
Pitch:
2mm
For Use With:
JWPF Series Tab Connector
Product Type:
Connector Housing
Connector Gender:
Female
Mount Type:
Cable
RoHs Compliant
Checking for live stock

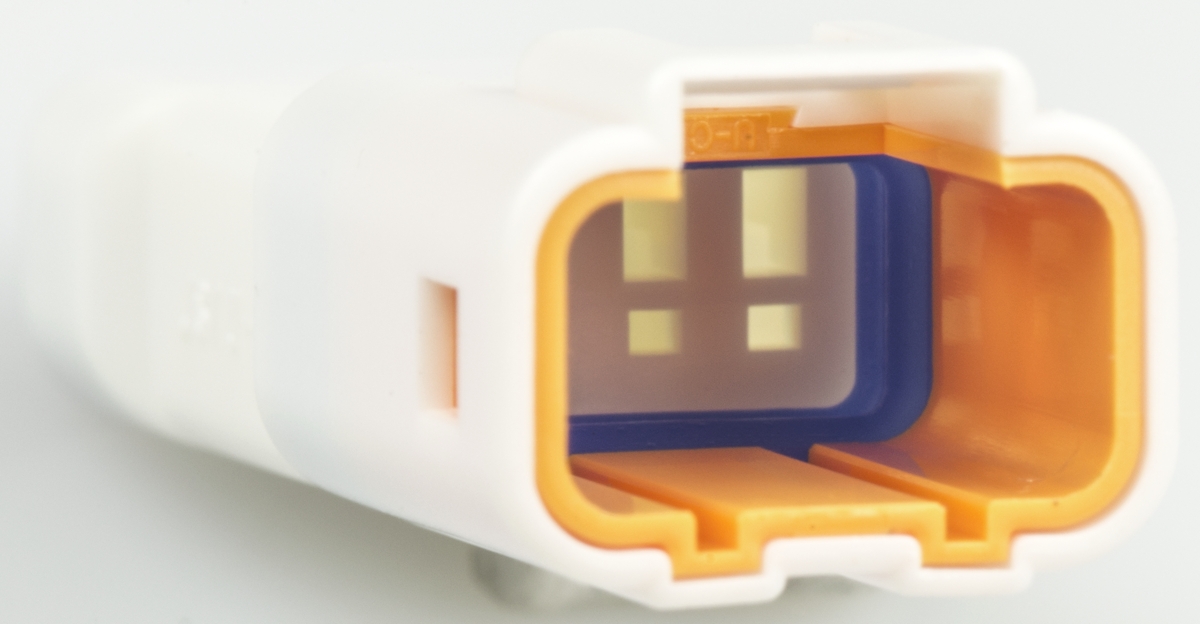

The JST 04T-JWPF-VSLE-S is a high-performance 4-way connector housing designed for wire-to-wire applications where space is limited and environmental protection is paramount. Part of the renowned JWPF series, this 2.0mm pitch plug features a robust, compact design that does not compromise on reliability. Its primary function is to provide a secure, waterproof interface for electrical connections, ensuring stable signal transmission even in challenging conditions. Built with high-quality PBT material, it offers excellent durability and chemical resistance.

Why Buy the Product? This JST 04T-JWPF-VSLE-S connector housing ensures seamless electrical integrity while providing superior protection against moisture ingress in tight industrial spaces. It is the ideal choice for engineers requiring a miniature, reliable, and waterproof interconnect solution.

  • IPX7 Waterproof Rating: Guaranteed protection against water immersion, making it perfect for wet environments.
  • Compact 2.0mm Pitch: Saves valuable PCB and equipment space without losing electrical performance.
  • Secure Locking Mechanism: Features an inner-housing lock to prevent accidental disconnection from vibrations.

Special Features

  • Double-spring terminal construction for high pressure.
  • Housing-to-terminal locks for secure contact insertion.
  • Solid rubber seal for enhanced environmental shielding.
  • Contained seal design to prevent damage during mating.

Typical Environments

  • Automotive electrical systems and sensors.
  • Outdoor LED lighting installations.
  • Industrial automation and robotic machinery.
  • Marine electronics and appliance manufacturing.
