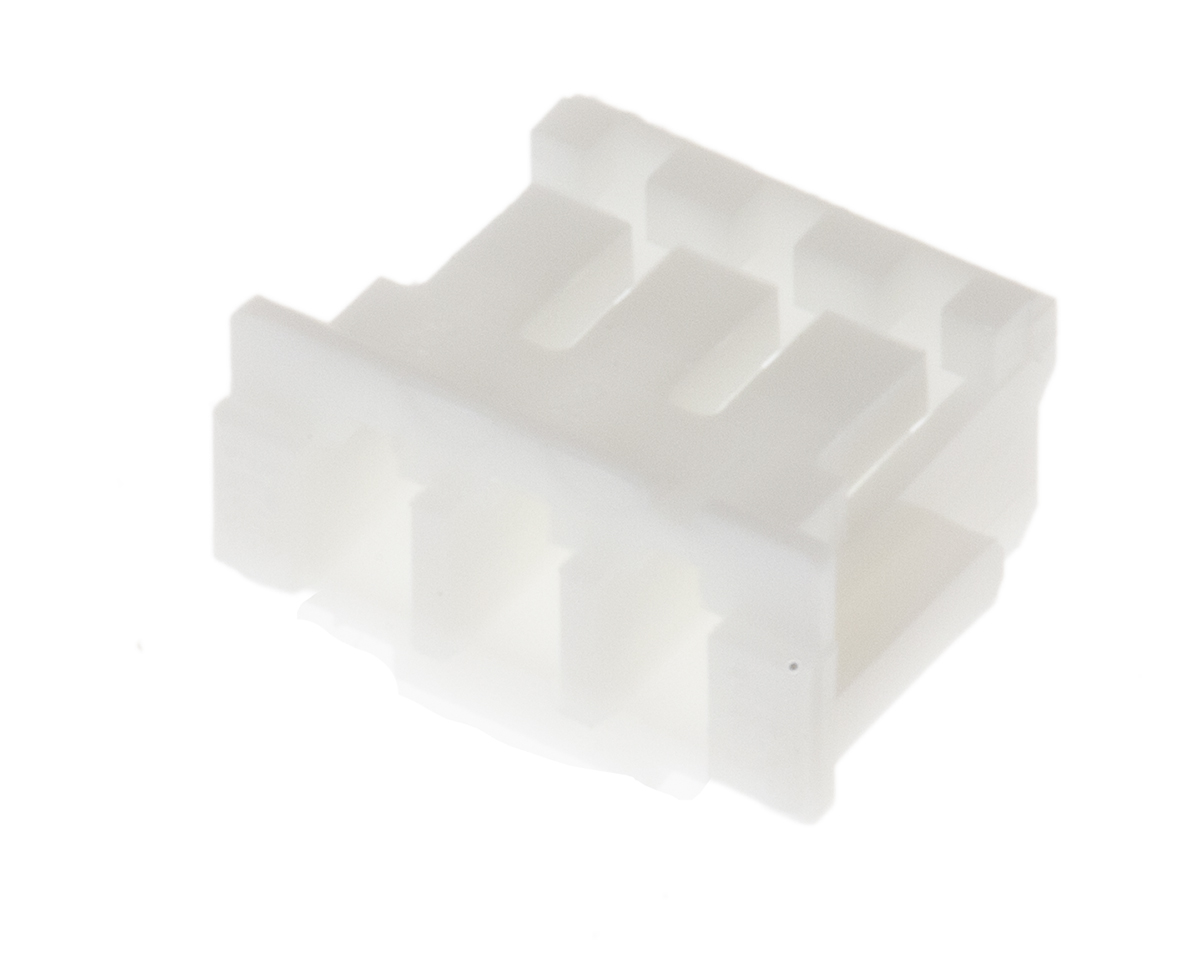

JST ZHR-3, 1.5mm Pitch, 3 Way, 1 Row Female Connector Housing

ZHR-3 JST , 1.5mm Pitch, 3 Way, 1 Row Female Connector Housing
ZHR-3
JST

Product Information

Mounting Type:
Cable Mount
Gender:
Female
Body Orientation:
Straight
Pitch:
1.5mm
Housing Material:
Nylon
Width:
3.4mm
Length:
6mm
Number of Rows:
1
Series:
ZH
For Use With:
ZH Series Dis-Connectable Crimp Style Connector
Number of Contacts:
3
RoHs Compliant
Checking for live stock

The JST ZHR-3 is a female connector housing designed for a secure and reliable electrical connection. With a 1.5mm pitch, 3-way configuration, and a single-row design, it is widely utilised in electronics and electrical applications to facilitate connections between wires and PCBs (Printed Circuit Boards). Its compact design, 3-way configuration, and single-row layout make it a preferred choice for engineers and designers seeking precise and reliable project connections.

  • Connector Housing Design

The ZHR-3 connector housing is specifically designed to house female electrical contacts, providing a protective and organised enclosure for the wires and connectors within. It ensures that the electrical connections remain secure and insulated.

  • 3-Way Configuration

The ZHR-3 features a 3-way configuration, which means it accommodates three individual female electrical contacts. This configuration allows for connecting three wires or conductors, making it versatile for various applications where multi-wire connections are necessary.

  • Secure and Reliable Connections

JST, known for its commitment to quality, manufactures the ZHR-3 connector housing with precision and durability in mind. The accommodation provides a secure and reliable connection that minimises the risk of signal loss or electrical discontinuity.

Versatile Applications of the JST ZHR-3, 1.5mm Pitch, 3 Way, 1 Row Female Connector Housing

The JST ZHR-3 1.5mm Pitch, 3 Way, 1 Row Female Connector Housing is a dependable and versatile component for establishing secure electrical connections in electronics and electrical applications, including:

  • Automotive
  • Industrial Automation
  • Electronics
  • Telecommunications
  • Its compact design and multi-wire support suit various electrical and electronic projects.

pdf icon
ZH Series 1.5mm Pitch Wire-to-Board Connectors - Catalogue Pages(Technical Reference)
