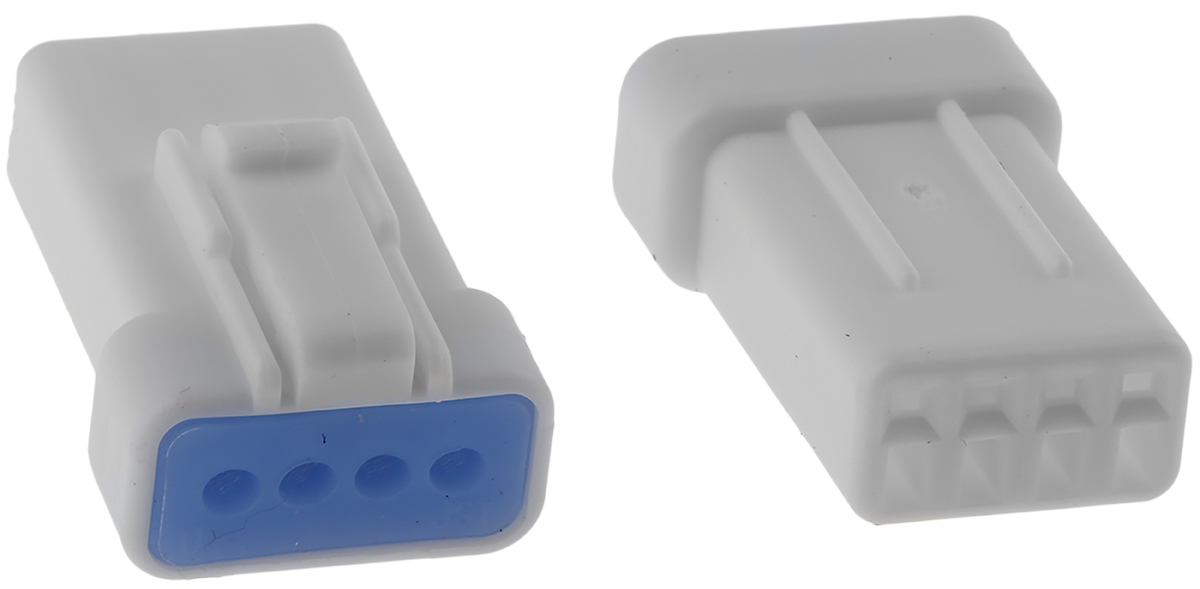

JST JWPF Series 2mm Pitch 4 Way 1 Row Female Straight PCB Connector Housing

Enrgtech Part No: ET13855863
|
Manufacturer Part No:
04R-JWPF-VSLE-S
|
Manufacturer: JST

04R-JWPF-VSLE-S JST JWPF Series 2mm Pitch 4 Way 1 Row Female Straight PCB Connector Housing

Product Information

Number of Contacts:

Orientation:

Straight

Series:

JWPF

Housing Material:

Polybutylene Terephthalate

Width:

5.5 mm

Length:

10.7mm

Number of Rows:

Standards/Approvals:

Pitch:

2mm

For Use With:

JWPF Series Receptacle Connector

Product Type:

Connector Housing

Connector Gender:

Female

Checking for live stock

The JST 04R-JWPF-VSLE-S is a high-performance, 4-way female connector housing designed for demanding wire-to-wire applications where space is at a premium and environmental protection is paramount. Part of the renowned JWPF Series, this compact 2.0mm pitch housing features an integrated superior moisture seal, making it an essential component for ensuring electrical integrity in wet or dusty conditions. Its robust construction and user-friendly locking mechanism provide a secure, vibration-resistant connection for modern electronic systems.

What Makes Our Product Stand Out?

This JST 04R-JWPF-VSLE-S connector housing combines an ultra-compact footprint with industrial-grade IPX7 waterproofing to ensure reliable performance in the harshest environments. It eliminates the need for bulky external enclosures by providing a self-contained, sealed interconnect solution.

Integrated solid rubber seals for IPX7 waterproof protection.
Space-saving 2.0mm pitch design for high-density wiring.
Secure inner-housing lock to prevent accidental disconnection.

Core Performance Features & Key Uses

Technical Specifications
Number of Contacts: 4 Positions (1 Row)
Pitch Spacing: 2.0mm
Current Rating: 3A AC/DC
Voltage Rating: 100V AC/DC
Ingress Protection: IPX7 (Waterproof)
Material: Polybutylene Terephthalate (PBT)
Operating Temperature: -55°C to +85°C
Suitable Environments
Automotive systems (door mirrors and light clusters).
Marine and outdoor electronic installations.
Industrial automation and factory lighting.
Household appliances like washing machines and refrigerators.

JWPF Series Wire to Wire 2.0mm pitch Connector - Catalogue Pages(Technical Reference)
