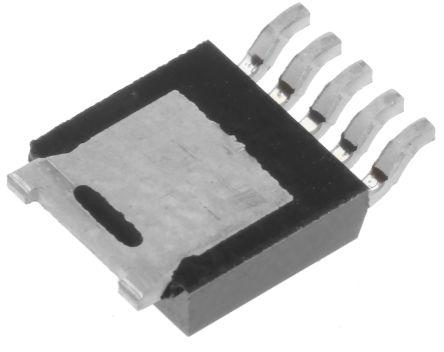

New Japan Radio NJM2387DL3-TE1, LDO Regulator, 1A Adjustable, 1.5 → 20 V, ±2% 5-Pin DPAK

NJM2387DL3-TE1 New Japan Radio , LDO Regulator, 1A Adjustable, 1.5 → 20 V, ±2% 5-Pin DPAK
NJM2387DL3-TE1
New Japan Radio

Product Information

Polarity:
Positive
Dimensions:
6.54 x 6.04 x 2.29mm
Regulator Type:
Low Dropout Voltage
Width:
6.04mm
Reference Voltage:
1.285V
Accuracy:
±2%
Load Regulation:
1.4 %/A
Output Type:
Adjustable
Package Type:
TO-252-DL3
Maximum Operating Temperature:
+85 °C
Quiescent Current:
5mA
Number of Outputs:
1
Line Regulation:
0.16 %/V
Length:
6.54mm
Pin Count:
5
Mounting Type:
Surface Mount
Height:
2.29mm
Output Voltage:
1.5 → 20 V
Minimum Operating Temperature:
-40 °C
Power Rating:
1W
Maximum Output Current:
1A
Maximum Input Voltage:
35 V
Minimum Input Voltage:
3.8 V
RoHs Compliant
Checking for live stock

This is LDO Regulator 1A Adjustable 1.5 → 20 V ±2% 5-Pin DPAK manufactured by New Japan Radio. The manufacturer part number is NJM2387DL3-TE1. While providing positive polarity. The given dimensions of the product include 6.54 x 6.04 x 2.29mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 6.04mm wide. Its reference voltage is about 1.285v . It provides high accuracy of ±2%. Load Regulation - 1.4 %/a. Furthermore, it has aadjustable output. The package is a sort of to-252-dl3. It has a maximum operating temperature of +85 °c. Supplied with 5ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.16 %/v. Its accurate length is 6.54mm. It contains 5 pins. The product is available in surface mount configuration. In addition, the height is 2.29mm. Features a 1.5 → 20 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Feature 1w of power rating. Featuring 1a of maximum output current. 35 v is the maximum voltage of the bespoke product. The product has 3.8 v of minimum input voltage.
