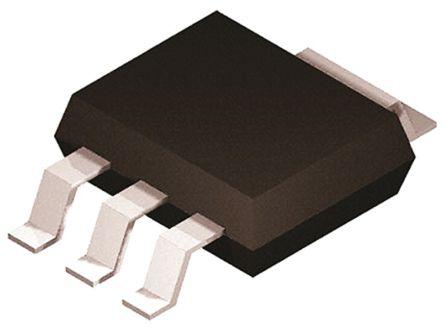

DiodesZetex AZ1117EH-ADJTRG1, LDO Regulator, Adjustable, ±1%, Maximum of 13 Vin 3+Tab-Pin, SOT-223

AZ1117EH-ADJTRG1 DiodesZetex , LDO Regulator, Adjustable, ±1%, Maximum of 13 Vin 3+Tab-Pin, SOT-223
DiodesZetex

Product Information

Polarity:
Positive
Number of Outputs:
1
Load Regulation:
0.6 %/A
Dimensions:
6.7 x 3.7 x 1.7mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Line Regulation:
±0.04 %/V
Regulator Type:
Low Dropout Voltage
Output Type:
Adjustable
Height:
1.7mm
Width:
3.7mm
Length:
6.7mm
Maximum Input Voltage:
13 V
Package Type:
SOT-223
Minimum Operating Temperature:
-40 °C
Quiescent Current:
6mA
Reference Voltage:
1.25V
Pin Count:
3+Tab
Accuracy:
±1%
RoHs Compliant
Checking for live stock

This is LDO Regulator Adjustable ±1% Maximum of 13 Vin 3+Tab-Pin SOT-223 manufactured by DiodesZetex. The manufacturer part number is AZ1117EH-ADJTRG1. While providing positive polarity. Additionally, the product is supplied with 1 outputs. Load Regulation - 0.6 %/a. The given dimensions of the product include 6.7 x 3.7 x 1.7mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Has a line regulation of ±0.04 %/v. The regulator is a type of low dropout voltage regulator. Furthermore, it has aadjustable output. In addition, the height is 1.7mm. Furthermore, the product is 3.7mm wide. Its accurate length is 6.7mm. 13 v is the maximum voltage of the bespoke product. The package is a sort of sot-223. Whereas, the minimum operating temperature of the product is -40 °c. Supplied with 6ma of quiescent current. Its reference voltage is about 1.25v . It contains 3+tab pins. It provides high accuracy of ±1%.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AZ1117E 1.0A Low Dropout Linear Regulator(Technical Reference)
