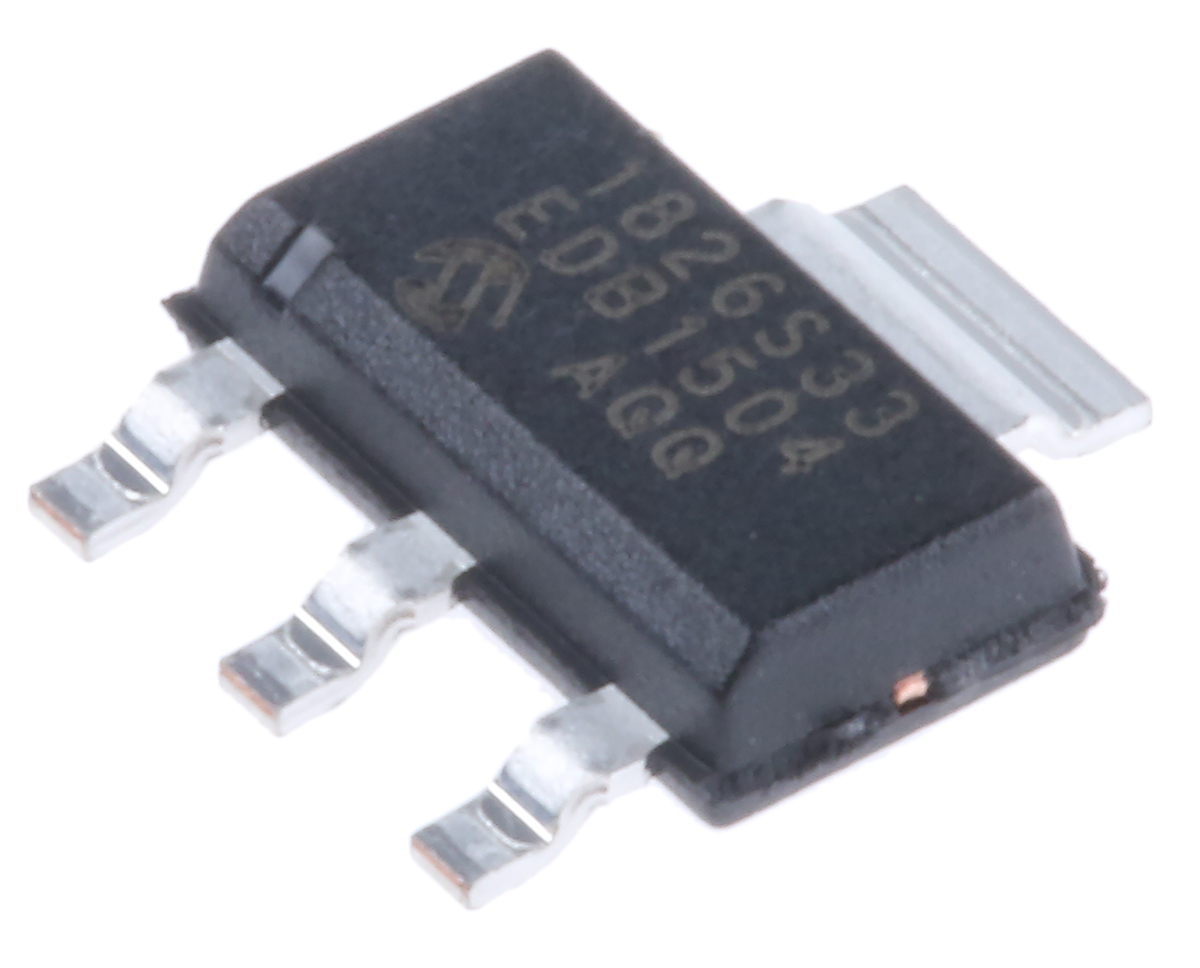

Microchip MCP1826S-3302E/DB, LDO Regulator, 1A, 3.3 V, ±2%, 2.3 → 6 Vin 3+Tab-Pin, SOT-223

Enrgtech Part No: ET14009223
|
Manufacturer Part No:
MCP1826S-3302E/DB
|
Manufacturer: Microchip

MCP1826S-3302E-DB Microchip MCP1826S-3302E/DB, LDO Regulator, 1A, 3.3 V, ±2%, 2.3 → 6 Vin 3+Tab-Pin, SOT-223

Product Information

Polarity:

Positive

Dimensions:

6.5 x 3.5 x 1.6mm

Regulator Type:

Low Dropout Voltage

Width:

3.5mm

Accuracy:

±2%

Load Regulation:

0.5 %

Output Type:

Fixed

Package Type:

SOT-223

Maximum Operating Temperature:

+125 °C

Quiescent Current:

0.12mA

Number of Outputs:

Line Regulation:

0.05 %/V

Checking for live stock

This is LDO Regulator 1A 3.3 V ±2% 2.3 → 6 Vin 3+Tab-Pin SOT-223 manufactured by Microchip. The manufacturer part number is MCP1826S-3302E/DB. While providing positive polarity. The given dimensions of the product include 6.5 x 3.5 x 1.6mm. The regulator is a type of low dropout voltage regulator. Furthermore, the product is 3.5mm wide. It provides high accuracy of ±2%. Load Regulation - 0.5 %. Furthermore, it has afixed output. The package is a sort of sot-223. It has a maximum operating temperature of +125 °c. Supplied with 0.12ma of quiescent current. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.05 %/v. Its accurate length is 6.5mm. It contains 3+tab pins. The product is available in surface mount configuration. In addition, the height is 1.6mm. Features a 3.3 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Featuring 1a of maximum output current. 6 v is the maximum voltage of the bespoke product. The product has 2.3 v of minimum input voltage.
