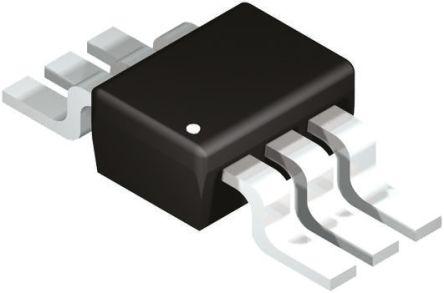

Analog Devices ADR510ARTZ-R2, Fixed Shunt Voltage Reference 1V, ±0.35 % 3-Pin, SOT-23

Enrgtech Part No: ET16757742
|
Manufacturer Part No:
ADR510ARTZ-R2
|
Manufacturer: Analog Devices

ADR510ARTZ-R2 Analog Devices , Fixed Shunt Voltage Reference 1V, ±0.35 % 3-Pin, SOT-23

Product Information

Initial Accuracy:

±0.35 %

Dimensions:

3.04 x 1.4 x 1.02mm

Mounting Type:

Surface Mount

Height:

1.02mm

Width:

1.4mm

Length:

3.04mm

Package Type:

SOT-23

Maximum Output Voltage:

1.0035 V

Minimum Operating Temperature:

-40 °C

Minimum Output Voltage:

0.9965 V

Nominal Voltage:

Reference Type:

Fixed

Checking for live stock

This is Fixed Shunt Voltage Reference 1V ±0.35 % 3-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is ADR510ARTZ-R2. Its initial accuracy is approximately ±0.35 % . The given dimensions of the product include 3.04 x 1.4 x 1.02mm. The product is available in surface mount configuration. In addition, the height is 1.02mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3.04mm. The package is a sort of sot-23. Its output voltage (maximum) includes 1.0035 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 0.9965 v minimum output voltage. The nominal voltage of the product is 1v. The product has a reference of fixed type. It has a maximum operating temperature of +85 °c. It contains 3 pins. Topology includes shunt.
