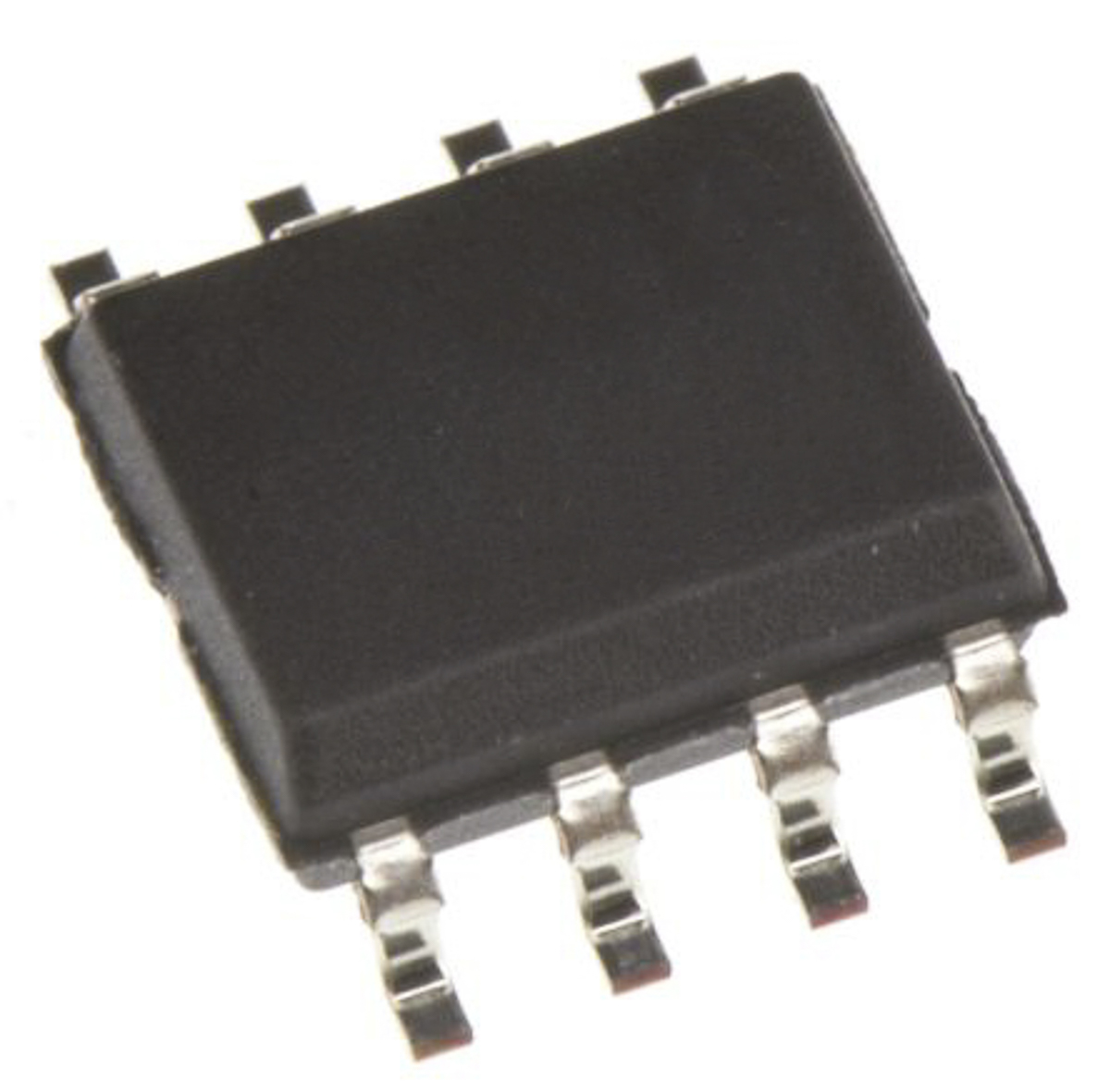

Analog Devices AD780BRZ, Adjustable Series/Shunt Voltage Reference 2.5V, ±0.04 %, SOIC 8-Pin

AD780BRZ Analog Devices , Adjustable Series/Shunt Voltage Reference 2.5V, ±0.04 %, SOIC 8-Pin
Analog Devices

Product Information

Load Regulation:
75 μV/mA
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Line Regulation:
10 μV/V
Maximum Input Voltage:
36 V
Height:
1.5mm
Width:
4mm
Length:
5mm
Initial Accuracy:
±1mV
Package Type:
SOIC N
Maximum Output Voltage:
2.5 V, 3 V
Minimum Operating Temperature:
-40 °C
Nominal Voltage:
4 - 36V
Reference Type:
Programmable
Maximum Output Current:
10mA
Pin Count:
8
Topology:
Series, Shunt
RoHs Compliant
Checking for live stock

This is Adjustable Series/Shunt Voltage Reference 2.5V ±0.04 % SOIC 8-Pin manufactured by Analog Devices. The manufacturer part number is AD780BRZ. Load Regulation - 75 μv/ma. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. Has a line regulation of 10 μv/v. 36 v is the maximum voltage of the bespoke product. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. Its initial accuracy is approximately ±1mv . The package is a sort of soic n. Its output voltage (maximum) includes 2.5 v, 3 v. Whereas, the minimum operating temperature of the product is -40 °c. The nominal voltage of the product is 4 - 36v. The product has a reference of programmable type. Featuring 10ma of maximum output current. It contains 8 pins. Topology includes series, shunt.

pdf icon
Datasheet AD780BRZ(Technical Reference)
