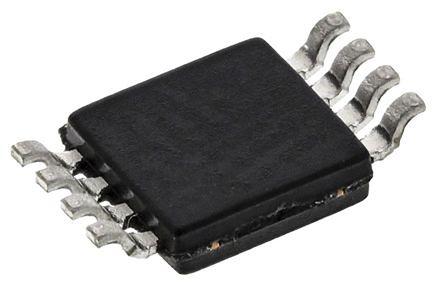

Analog Devices ADR3525WARMZ-R7, Fixed Series Voltage Reference 2.5V, ±0.1 %, MSOP 8-Pin

Enrgtech Part No: ET14003846
|
Manufacturer Part No:
ADR3525WARMZ-R7
|
Manufacturer: Analog Devices

ADR3525WARMZ-R7 Analog Devices , Fixed Series Voltage Reference 2.5V, ±0.1 %, MSOP 8-Pin

Product Information

Load Regulation:

50 ppm/mA

Dimensions:

3.2 x 3.2 x 0.95mm

Mounting Type:

Surface Mount

Maximum Operating Temperature:

+125 °C

Line Regulation:

120 ppm/V

Maximum Input Voltage:

5.5 V

Height:

0.95mm

Width:

0.95mm

Length:

3.2mm

Initial Accuracy:

±0.1 %

Package Type:

MSOP

Maximum Output Voltage:

2.503 V

Checking for live stock

This is Fixed Series Voltage Reference 2.5V ±0.1 % MSOP 8-Pin manufactured by Analog Devices. The manufacturer part number is ADR3525WARMZ-R7. Load Regulation - 50 ppm/ma. The given dimensions of the product include 3.2 x 3.2 x 0.95mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Has a line regulation of 120 ppm/v. 5.5 v is the maximum voltage of the bespoke product. In addition, the height is 0.95mm. Furthermore, the product is 0.95mm wide. Its accurate length is 3.2mm. Its initial accuracy is approximately ±0.1 % . The package is a sort of msop. Its output voltage (maximum) includes 2.503 v. Whereas, the minimum operating temperature of the product is -40 °c. The product features 2.498 v minimum output voltage. The nominal voltage of the product is 2.5v. The product has a reference of fixed type. Featuring 10ma of maximum output current. It contains 8 pins. Topology includes series.

ADR3525/ADR3530/ADR3533/ADR3540/ADR3550, Micropower, High Accuracy Voltage References(Technical Reference)
