Toggle SW SMT,SPDT,0.4VA max
Product Information
Contact Resistance:
80mΩ
Actuator Length:
3.8mm
Illuminated:
No
Mounting Type:
PCB
Voltage Rating:
28V ac/dc
Contact Current Rating:
0.4 VA
Operating Temperature Range:
-30 → +85°C
Contact Configuration:
SPDT
Minimum Operating Temperature:
-30°C
Switch Operation:
On-Off-On
Maximum Operating Temperature:
+85°C
Terminal Type:
Surface Mount
Contact Material:
Phosphor Bronze (Movable & Stationary)
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
-
Actuator Length:
3.81mm
Voltage Rating - AC:
28 V
Illumination Type, Color:
-
Switch Function:
On-Off-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
G3T
Packaging:
Tube
Bushing Thread:
Unthreaded
Actuator Type:
Standard Round
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Base Product Number:
G3T13A
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search G3T13AB-S on website for other similar products.
We accept all major payment methods for all products including ET17052948. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with G3T13AB-S directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toggle SW SMT,SPDT,0.4VA max. You can also check on our website or by contacting our customer support team for further order details on Toggle SW SMT,SPDT,0.4VA max.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17052948 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17052948.
Yes. We ship G3T13AB-S Internationally to many countries around the world.

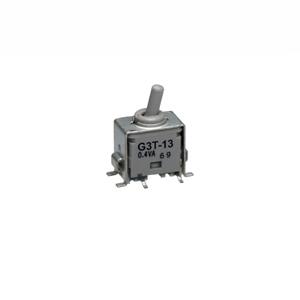

This is Toggle SW SMTSPDT0.4VA max manufactured by NKK Switches. The manufacturer part number is G3T13AB-S. It features a 80mω contact resistance. The actuator is a 3.8mm long. Illumination Option no. The product is available in pcb configuration. Moreover, the product has a nominal 28v ac/dc voltage rating. The rated contact current is 0.4 va. The product has -30 → +85°c of operating temperature range. The contact is equipped with spdt configuration. Whereas, the minimum operating temperature of the product is -30°c. It provides on-off-on switch operation. It has a maximum operating temperature of +85°c. The terminal is a surface mount type. The product is made from sturdy phosphor bronze (movable & stationary) materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. Moreover, it has gull wing terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. The actuator is a 3.81mm long. The product exhibits 28 v of AC voltage rating. It is designed as a on-off-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The product is available in surface mount configuration. The product g3t, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. The product has bushing thread of unthreaded. The product carries standard round actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to g3t13a, a base product number of the product. The product is designated with the ear99 code number.
