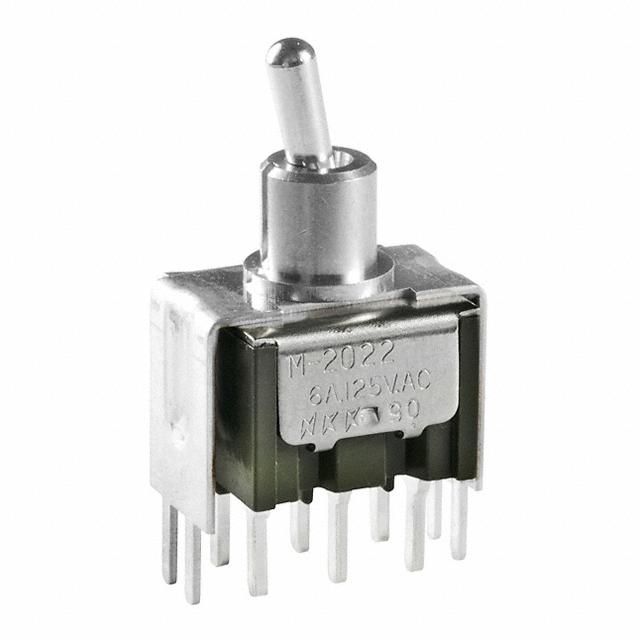

NKK Switches M2022S2A2W13

M2022S2A2W13 NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
25,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
30 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
Circular - 6.50mm Dia
Actuator Length:
6.86mm
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
M2022S2A2W13 Models
edacadModelUrl:
/en/models/1055174
Illumination Type, Color:
-
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT
Current Rating (Amps):
6A (AC), 4A (DC)
Ingress Protection:
-
Features:
Epoxy Sealed Terminals
Mounting Type:
Through Hole
Series:
M
Packaging:
Tray
Bushing Thread:
Unthreaded
Actuator Type:
Standard Round
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Chrome Plated
Base Product Number:
M2022S2
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is M2022S2A2W13. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has pc pin terminal style. 30 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. It also has a circular - 6.50mm dia dimensional features. The actuator is a 6.86mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. Additionally, the product's output is 6a (ac), 4a (dc). The splendid features of the product include epoxy sealed terminals. The product is available in through hole configuration. The product m, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. The product has bushing thread of unthreaded. The product carries standard round actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, chrome plated material. Moreover, it corresponds to m2022s2, a base product number of the product. The product is designated with the ear99 code number.
