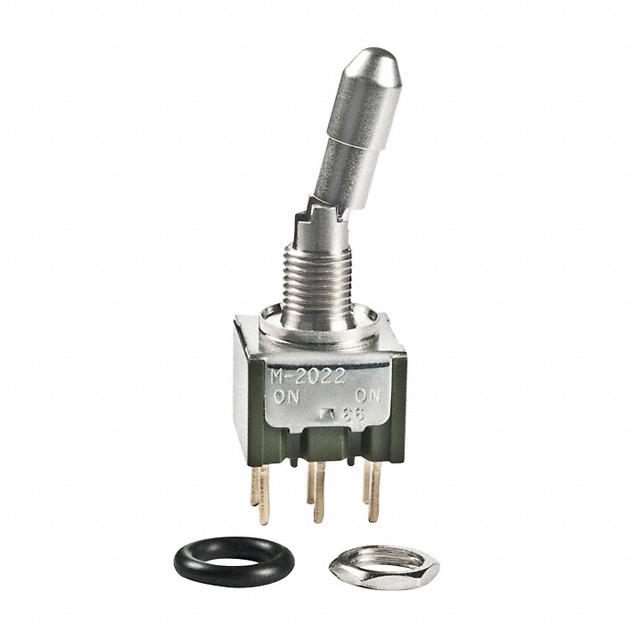

NKK Switches M2022LL3G03

M2022LL3G03 NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
Circular - 6.50mm Dia
Actuator Length:
16.50mm
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
M2022LL3G03 Models
edacadModelUrl:
/en/models/1027300
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount
Series:
M
Bushing Thread:
1/4-40
Actuator Type:
Locking Lever
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Chrome Plated
Base Product Number:
M2022LL
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is M2022LL3G03. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. It also has a circular - 6.50mm dia dimensional features. The actuator is a 16.50mm long. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. Additionally, the product's output is 0.4va (ac/dc). It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include epoxy sealed terminals. The product is available in panel mount configuration. The product m, is a highly preferred choice for users. The product has bushing thread of 1/4-40. The product carries locking lever actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, chrome plated material. Moreover, it corresponds to m2022ll, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
pdf icon
M Series Toggles, rockers, Pushbuttons CSA Mark Size 23/Jul/2015(PCN Design/Specification)
pdf icon
Multiple Devices O-ring 30/Jun/2011(PCN Design/Specification)
pdf icon
Obsolete 09/MAY/2023(PCN Obsolescence/ EOL)
pdf icon
M Series Bushing Mnt Mini Toggle Datasheet(Datasheets)
