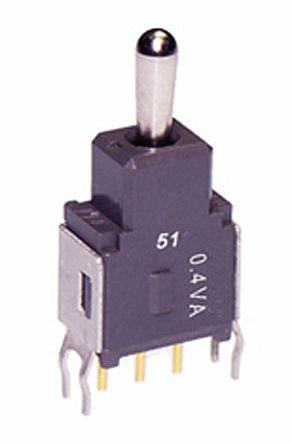

NKK Switches A18JB
Product Information
Contact Resistance:
50mΩ
Actuator Length:
6.3mm
Operating Temperature Range:
-30 +85°C
Mounting Type:
PCB
Voltage Rating:
28V ac/dc
Contact Current Rating:
100 mA
Contact Configuration:
SPDT
Actuator Material:
Nickel Plated Brass
Minimum Operating Temperature:
-30°C
Mechanical Life:
50000Operations
Switch Operation:
(On)-Off-(On)
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Contact Material:
Brass
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
-
Actuator Length:
6.30mm
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
A18JB Models
edacadModelUrl:
/en/models/2103323
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
Mom-Off-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Through Hole
Series:
A
Bushing Thread:
Unthreaded, Square
Actuator Type:
Standard Round
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon, Glass Filled
Base Product Number:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search A18JB on website for other similar products.
We accept all major payment methods for all products including ET13459979. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with A18JB directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches A18JB. You can also check on our website or by contacting our customer support team for further order details on NKK Switches A18JB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13459979 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13459979.
Yes. We ship A18JB Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is A18JB. It features a 50mω contact resistance. The actuator is a 6.3mm long. The product has -30 +85°c of operating temperature range. The product is available in pcb configuration. Moreover, the product has a nominal 28v ac/dc voltage rating. The rated contact current is 100 ma. The contact is equipped with spdt configuration. The actuator is designed from sturdy nickel plated brass material. Whereas, the minimum operating temperature of the product is -30°c. The product also provide mechanical stability with 50000operations. It provides (on)-off-(on) switch operation. It has a maximum operating temperature of +85°c. The terminal is a through hole type. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. The actuator is a 6.30mm long. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a mom-off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include process sealed. The product is available in through hole configuration. The product a, is a highly preferred choice for users. The product has bushing thread of unthreaded, square. The product carries standard round actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa), nylon, glass filled material. The product is designated with the ear99 code number.
