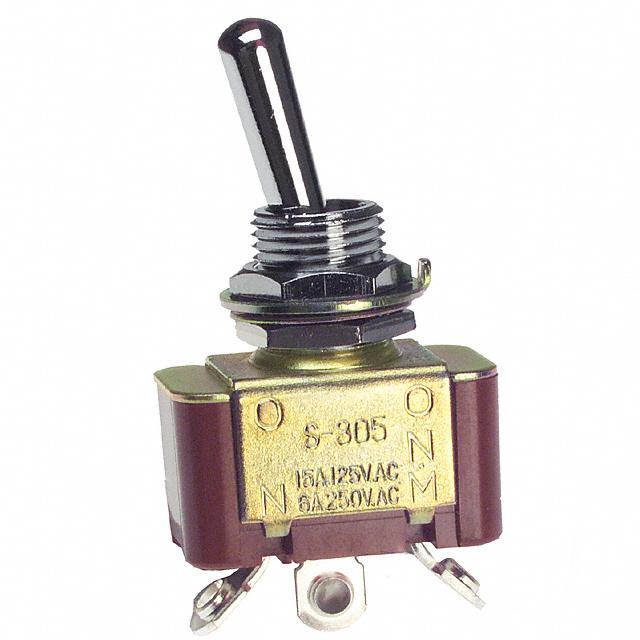

NKK Switches S305

Enrgtech Part No: ET12215514
|
Manufacturer Part No:
S305
|
Manufacturer: NKK Switches

Product Information

The NKK Switches S305 series boasts a robust design, featuring high-performance miniature toggle switches with various actuator and terminal options for versatile applications. With an impressive mechanical life of up to 100,000 operations, the S305 series offers exceptional durability and reliability, ensuring long-lasting functionality in industrial, commercial, and consumer electronic devices.

Contact Resistance:

10mΩ

Actuator Length:

17.5mm

Standards Met:

CSA Recognised

Mounting Type:

Panel Mount

Voltage Rating:

30 V dc, 250 V ac

Contact Current Rating:

15 A @ 125 V ac, 20 A @ 30 V dc

Panel Cut Out Diameter:

12.5mm

Contact Configuration:

SPDT

Panel Cut Out Size:

12.5 (Dia.)mm

Actuator Material:

Chrome Plated Brass

Operating Temperature Range:

-10 → +70°C

Minimum Operating Temperature:

-10°C

Checking for live stock

The NKK Switches S305 is a high-quality snap-action switch that offers reliable and consistent performance in demanding applications. Its high electrical rating, long mechanical life, and versatile actuator and mounting styles make it an ideal choice for various applications. By choosing the S305 switch, manufacturers can improve their product's reliability, reduce maintenance costs, and optimize space utilization.

Benefits and Potential Uses of NKK Switches S305?

The NKK Switches S305 offers several benefits, including:

High reliability, versatility, and long-term cost savings.
Its versatility in actuator and mounting styles allows for customization to fit specific application requirements, reducing the need for additional components or modifications.
The switch's high electrical rating and mechanical life make it ideal for applications where dependability is critical, such as in medical devices, industrial equipment, and consumer electronics.
The switch's compact size and design make it suitable for space-constrained applications, allowing more efficient use of available space.
The S305 switch's long mechanical life also translates into long-term cost savings for manufacturers.
With fewer switch replacements needed over time, maintenance costs are reduced, and overall product reliability is improved.

Key Features of NKK Switches S305 Include:

It has a high electrical rating of 21A at 125V AC or 10A at 250V AC, making it suitable for various applications.
The switch is also open in several mounting types, including PCB, solder lug, and quick-connect terminal, providing flexibility in installation options.
The switch has a long mechanical life of up to 1 million operations, ensuring reliable and consistent performance even in high-stress environments.
The NKK Switches S305 is a single-pole, double-throw (SPDT) snap-action switch that provides a positive tactile feel and audible click when activated.
The S305 switch is available in various actuator styles, including pin plunger, lever, and roller lever, allowing it to be used in different applications.

Series S_Datasheet_EN(Technical Reference)

RoHS Cert - Switches & Pushbuttons(Environmental Information)

NKK Switches PFOS & PFOA Free Cert(Environmental Information)

NKK Switches ODC Cert(Environmental Information)

S, ST, WT Toggles, LW ,WR Rockers, WB Pushbuttons 31/Mar/2016(PCN Design/Specification)

LP01,YB,YB2 Multiple Changes 29/Nov/2016(PCN Design/Specification)

S Series Datasheet(Datasheets)

S Series Toggle High Cap Datasheet(Datasheets)
