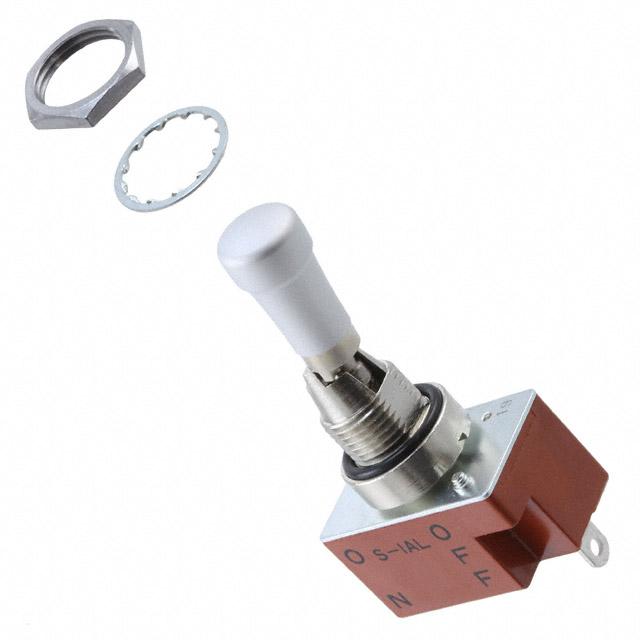

NKK Switches S1AL
Product Information
Contact Resistance:
10mΩ
Actuator Length:
23.5mm
Operating Temperature Range:
-10 → +70°C
Mounting Type:
Panel Mount
Voltage Rating:
30 V dc, 250 V ac
Contact Current Rating:
15 A @ 125 V ac, 20 A @ 30 V dc
Panel Cut Out Diameter:
12.2mm
IP Rating:
IP67
Panel Cut Out Size:
12.2 (Dia.)mm
Actuator Material:
Chrome Plated Brass
Minimum Operating Temperature:
-10°C
Contact Configuration:
SPST
Mechanical Life:
50000Operations
Switch Operation:
Latching
Maximum Operating Temperature:
+70°C
Terminal Type:
Solder
Contact Material:
Brass
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
25,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
30 V
Operating Temperature:
-30°C ~ 70°C
Panel Cutout Dimensions:
Circular - 12.50mm Dia
Actuator Length:
23.50mm
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
S1AL Models
edacadModelUrl:
/en/models/1006963
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
On-Off
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST
standardLeadTime:
18 Weeks
Current Rating (Amps):
15A (AC), 20A (DC)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Series:
S
Bushing Thread:
M12 x 1
Actuator Type:
Locking Lever
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Chrome Plated
Base Product Number:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search S1AL on website for other similar products.
We accept all major payment methods for all products including ET12140940. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with S1AL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches S1AL. You can also check on our website or by contacting our customer support team for further order details on NKK Switches S1AL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12140940 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12140940.
Yes. We ship S1AL Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is S1AL. It features a 10mω contact resistance. The actuator is a 23.5mm long. The product has -10 → +70°c of operating temperature range. The product is available in panel mount configuration. Moreover, the product has a nominal 30 v dc, 250 v ac voltage rating. The rated contact current is 15 a @ 125 v ac, 20 a @ 30 v dc. The panel has a 12.2mm cut-out diameter. It is IP rated with ip67. The panel cut out size includes 12.2 (dia.)mm. The actuator is designed from sturdy chrome plated brass material. Whereas, the minimum operating temperature of the product is -10°c. The contact is equipped with spst configuration. The product also provide mechanical stability with 50000operations. It provides latching switch operation. It has a maximum operating temperature of +70°c. The terminal is a solder type. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has solder lug terminal style. 30 v of DC voltage rating. The product has -30°c ~ 70°c operating temperature range. It also has a circular - 12.50mm dia dimensional features. The actuator is a 23.50mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a on-off switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 15a (ac), 20a (dc). It is IP rated with ip67 - dust tight, waterproof. The product s, is a highly preferred choice for users. The product has bushing thread of m12 x 1. The product carries locking lever actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, chrome plated material. The product is designated with the ear99 code number.
