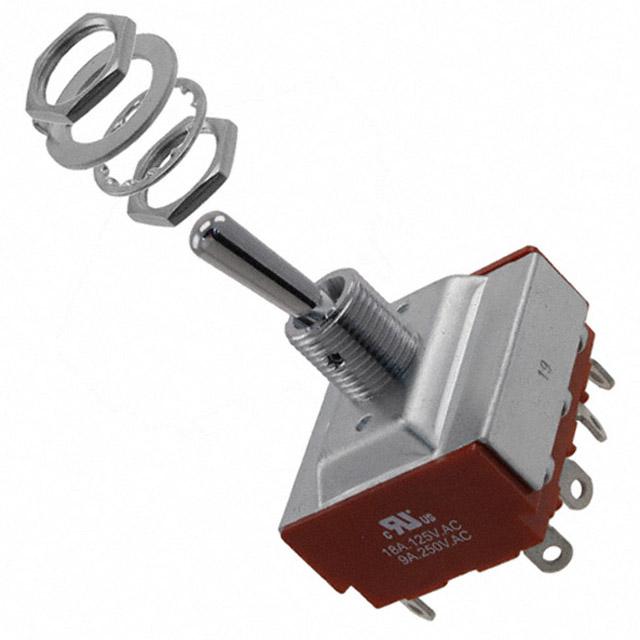

NKK Switches S41
Product Information
Contact Resistance:
10mΩ
Actuator Length:
17.5mm
Standards Met:
CSA Recognised, CULus Recognised, UL Recognised
Mounting Type:
Panel Mount
Voltage Rating:
30 V dc, 250 V ac
Contact Current Rating:
20 A @ 30 V dc, 25 A @ 125 V ac
Panel Cut Out Diameter:
12.5mm
Contact Configuration:
4PST
Panel Cut Out Size:
12.5 (Dia.)mm
Actuator Material:
Chrome Plated Brass
Operating Temperature Range:
-10 +70°C
Minimum Operating Temperature:
-10°C
Mechanical Life:
50000Operations
Switch Operation:
Latching
Maximum Operating Temperature:
+70°C
Terminal Type:
Solder
Contact Material:
Brass
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
25,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
30 V
Operating Temperature:
-10°C ~ 70°C
Panel Cutout Dimensions:
Circular - 12.50mm Dia
Actuator Length:
17.50mm
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
S41 Models
edacadModelUrl:
/en/models/1007148
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
On-Off
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
4PST
standardLeadTime:
30 Weeks
Current Rating (Amps):
20A (AC/DC)
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
S
Bushing Thread:
M12 x 1
Actuator Type:
Standard Round
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Chrome Plated
Base Product Number:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search S41 on website for other similar products.
We accept all major payment methods for all products including ET12053116. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with S41 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches S41. You can also check on our website or by contacting our customer support team for further order details on NKK Switches S41.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12053116 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12053116.
Yes. We ship S41 Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is S41. It features a 10mω contact resistance. The actuator is a 17.5mm long. The product complies with all safety standards, such as csa recognised, culus recognised, ul recognised. The product is available in panel mount configuration. Moreover, the product has a nominal 30 v dc, 250 v ac voltage rating. The rated contact current is 20 a @ 30 v dc, 25 a @ 125 v ac. The panel has a 12.5mm cut-out diameter. The contact is equipped with 4pst configuration. The panel cut out size includes 12.5 (dia.)mm. The actuator is designed from sturdy chrome plated brass material. The product has -10 +70°c of operating temperature range. Whereas, the minimum operating temperature of the product is -10°c. The product also provide mechanical stability with 50000operations. It provides latching switch operation. It has a maximum operating temperature of +70°c. The terminal is a solder type. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has solder lug terminal style. 30 v of DC voltage rating. The product has -10°c ~ 70°c operating temperature range. It also has a circular - 12.50mm dia dimensional features. The actuator is a 17.50mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a on-off switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral 4pst circuit. It has a long 30 weeks standard lead time. Additionally, the product's output is 20a (ac/dc). The product s, is a highly preferred choice for users. The product has bushing thread of m12 x 1. The product carries standard round actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, chrome plated material. The product is designated with the ear99 code number.
