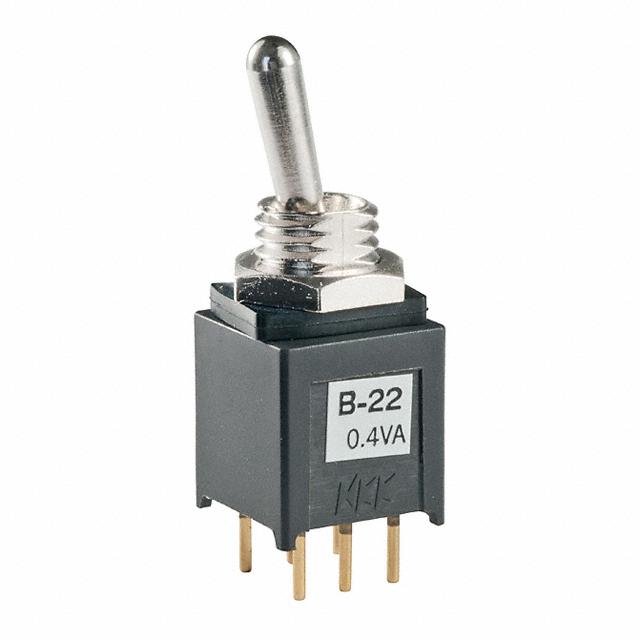

NKK Switches B22A1P
Product Information
Contact Resistance:
50mΩ
Actuator Length:
8mm
Illuminated:
No
Mounting Type:
PCB
Voltage Rating:
28V ac/dc
Contact Current Rating:
0.4VA
IP Rating:
IP65
Actuator Material:
Nickel Plated Brass
Minimum Operating Temperature:
-30°C
Contact Configuration:
DPDT
Operating Temperature Range:
-30 → +85°C
Switch Operation:
On-(On)
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Contact Material:
Copper Alloy (Stationary), Phosphor Bronze (Movable)
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
Circular - 6.00mm Dia
Actuator Length:
8.00mm
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
B22A1P Models
edacadModelUrl:
/en/models/1058726
Illumination Type, Color:
-
Package:
Tray
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT
standardLeadTime:
21 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount
Series:
B
Bushing Thread:
M6 x 0.75
Actuator Type:
Standard Round
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Nickel Plated
Base Product Number:
B22A1
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search B22A1P on website for other similar products.
We accept all major payment methods for all products including ET12051601. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with B22A1P directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches B22A1P. You can also check on our website or by contacting our customer support team for further order details on NKK Switches B22A1P.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12051601 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12051601.
Yes. We ship B22A1P Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is B22A1P. It features a 50mω contact resistance. The actuator is a 8mm long. Illumination Option no. The product is available in pcb configuration. Moreover, the product has a nominal 28v ac/dc voltage rating. The rated contact current is 0.4va. It is IP rated with ip65. The actuator is designed from sturdy nickel plated brass material. Whereas, the minimum operating temperature of the product is -30°c. The contact is equipped with dpdt configuration. The product has -30 → +85°c of operating temperature range. It provides on-(on) switch operation. It has a maximum operating temperature of +85°c. The terminal is a through hole type. The product is made from sturdy copper alloy (stationary), phosphor bronze (movable) materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. It also has a circular - 6.00mm dia dimensional features. The actuator is a 8.00mm long. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in tray package . It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. It has a long 21 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include epoxy sealed terminals. The product is available in panel mount configuration. The product b, is a highly preferred choice for users. The product has bushing thread of m6 x 0.75. The product carries standard round actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, nickel plated material. Moreover, it corresponds to b22a1, a base product number of the product. The product is designated with the ear99 code number.
