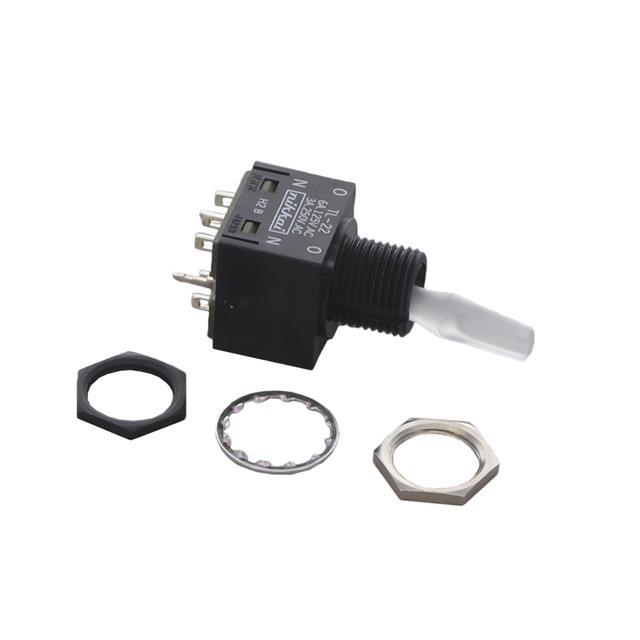

NKK Switches TL22DNAW016G
Product Information
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
25,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
12 V
Operating Temperature:
-10°C ~ 55°C
Panel Cutout Dimensions:
Circular - 12.50mm Dia
Actuator Length:
17.50mm
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
TL22DNAW016G Models
edacadModelUrl:
/en/models/1007022
Illumination Type, Color:
LED, Blue
Package:
Bulk
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT
Current Rating (Amps):
6A (AC/DC)
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount
Series:
TL
Bushing Thread:
M12 x 1
Actuator Type:
Flatted
Illumination:
Illuminated
Illumination Voltage (Nominal):
3.3 VDC
Actuator Material:
Polycarbonate (PC)
Base Product Number:
TL22DN
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TL22DNAW016G on website for other similar products.
We accept all major payment methods for all products including ET12006193. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with TL22DNAW016G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches TL22DNAW016G. You can also check on our website or by contacting our customer support team for further order details on NKK Switches TL22DNAW016G.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12006193 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12006193.
Yes. We ship TL22DNAW016G Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is TL22DNAW016G. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has solder lug terminal style. 12 v of DC voltage rating. The product has -10°c ~ 55°c operating temperature range. It also has a circular - 12.50mm dia dimensional features. The actuator is a 17.50mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with led, blue illumination. It is shipped in bulk package . It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. Additionally, the product's output is 6a (ac/dc). It is IP rated with ip65 - dust tight, water resistant. The splendid features of the product include epoxy sealed terminals. The product is available in panel mount configuration. The product tl, is a highly preferred choice for users. The product has bushing thread of m12 x 1. The product carries flatted actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 3.3 vdc. The actuator is designed from sturdy polycarbonate (pc) material. Moreover, it corresponds to tl22dn, a base product number of the product. The product is designated with the ear99 code number.
