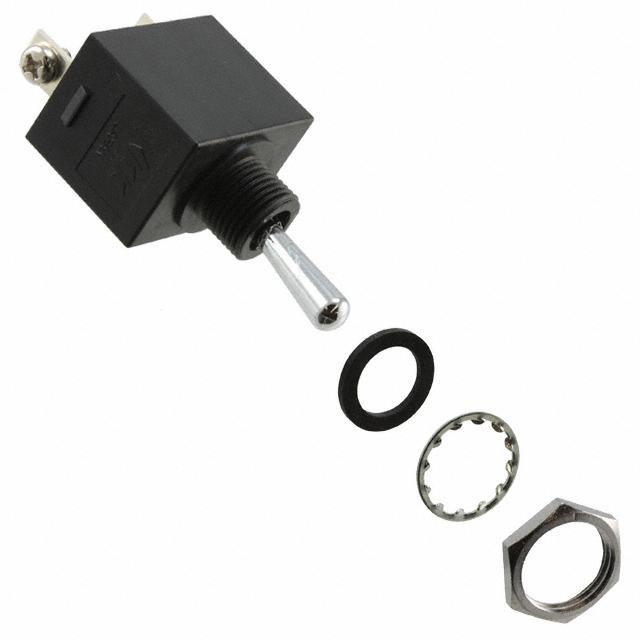

NKK Switches WT11T
Product Information
Contact Resistance:
10mΩ
Actuator Length:
17.5mm
Standards Met:
CSA TEW 105 Certified, UL 94V-0, UL AWM 1015 Recognised
Mounting Type:
Panel Mount
Voltage Rating:
30 V dc, 250V ac
Contact Current Rating:
10 A
Panel Cut Out Diameter:
12.5mm
IP Rating:
IP60, IP67
Panel Cut Out Size:
12.5 (Dia.)mm
Actuator Material:
Chrome Plated Brass
Operating Temperature Range:
-30 → +70°C
Minimum Operating Temperature:
-30°C
Contact Configuration:
SPST
Mechanical Life:
50000Operations
Switch Operation:
On-Off
Maximum Operating Temperature:
+70°C
Terminal Type:
Screw
Contact Material:
Brass
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
15,000 Cycles
Termination Style:
Screw Terminal
Voltage Rating - DC:
30 V
Operating Temperature:
-30°C ~ 70°C
Panel Cutout Dimensions:
Circular - 12.50mm Dia
Actuator Length:
17.50mm
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
WT11T Models
edacadModelUrl:
/en/models/1007030
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
On-Off
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST
standardLeadTime:
20 Weeks
Current Rating (Amps):
10A (AC/DC)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount
Series:
WT
Bushing Thread:
M12 x 1
Actuator Type:
Standard Round
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Chrome Plated
Base Product Number:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search WT11T on website for other similar products.
We accept all major payment methods for all products including ET11829525. Please check your shopping cart at the time of order.
You can order NKK Switches brand products with WT11T directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Toggle Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NKK Switches WT11T. You can also check on our website or by contacting our customer support team for further order details on NKK Switches WT11T.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11829525 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NKK Switches" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11829525.
Yes. We ship WT11T Internationally to many countries around the world.
This is manufactured by NKK Switches. The manufacturer part number is WT11T. It features a 10mω contact resistance. The actuator is a 17.5mm long. The product complies with all safety standards, such as csa tew 105 certified, ul 94v-0, ul awm 1015 recognised. The product is available in panel mount configuration. Moreover, the product has a nominal 30 v dc, 250v ac voltage rating. The rated contact current is 10 a. The panel has a 12.5mm cut-out diameter. It is IP rated with ip60, ip67. The panel cut out size includes 12.5 (dia.)mm. The actuator is designed from sturdy chrome plated brass material. The product has -30 → +70°c of operating temperature range. Whereas, the minimum operating temperature of the product is -30°c. The contact is equipped with spst configuration. The product also provide mechanical stability with 50000operations. It provides on-off switch operation. It has a maximum operating temperature of +70°c. The terminal is a screw type. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 15,000 cycles. Moreover, it has screw terminal terminal style. 30 v of DC voltage rating. The product has -30°c ~ 70°c operating temperature range. It also has a circular - 12.50mm dia dimensional features. The actuator is a 17.50mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a on-off switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst circuit. It has a long 20 weeks standard lead time. Additionally, the product's output is 10a (ac/dc). It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include epoxy sealed terminals. The product wt, is a highly preferred choice for users. The product has bushing thread of m12 x 1. The product carries standard round actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, chrome plated material. The product is designated with the ear99 code number.
