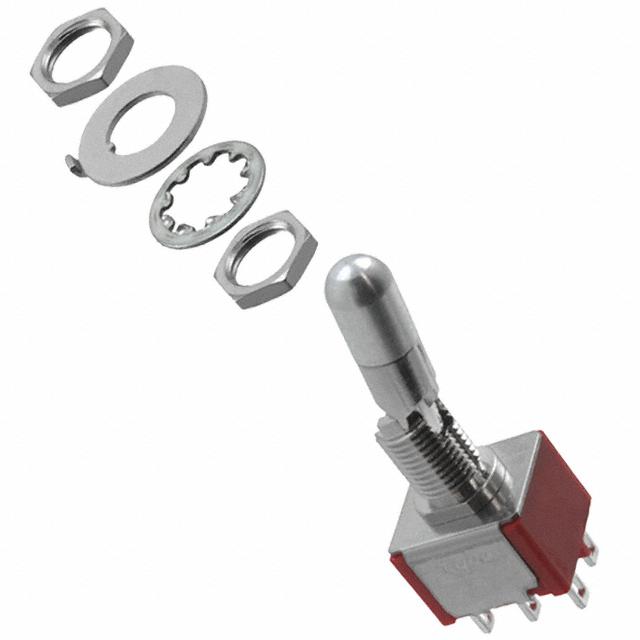

TE Connectivity ALCOSWITCH Switches 1825138-3

1825138-3 TE Connectivity ALCOSWITCH Switches
1825138-3
TE Connectivity ALCOSWITCH Switches

Product Information

HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
6,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
Circular - 6.35mm Dia
Actuator Length:
16.51mm
Voltage Rating - AC:
120 V
REACH Status:
REACH Affected
edacadModel:
1825138-3 Models
edacadModelUrl:
/en/models/1833032
Illumination Type, Color:
-
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT
standardLeadTime:
28 Weeks
Current Rating (Amps):
5A (AC/DC)
Ingress Protection:
-
Features:
Epoxy Sealed Terminals
Mounting Type:
Panel Mount
Series:
Gemini A
Packaging:
Bulk
Bushing Thread:
1/4-40
Actuator Type:
Locking Lever
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Brass, Nickel Plated
Base Product Number:
1825138
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity ALCOSWITCH Switches. The manufacturer part number is 1825138-3. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 6,000 cycles. Moreover, it has solder lug terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. It also has a circular - 6.35mm dia dimensional features. The actuator is a 16.51mm long. The product exhibits 120 v of AC voltage rating. In addition, it is reach affected. It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. It has a long 28 weeks standard lead time. Additionally, the product's output is 5a (ac/dc). The splendid features of the product include epoxy sealed terminals. The product is available in panel mount configuration. The product gemini a, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product has bushing thread of 1/4-40. The product carries locking lever actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy brass, nickel plated material. Moreover, it corresponds to 1825138, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Gemini Switches Series Drawing 21/Apr/2014(PCN Design/Specification)
