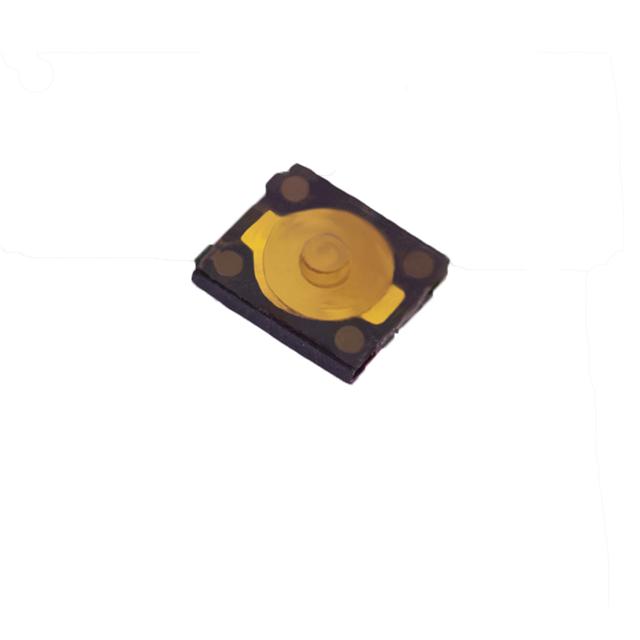

E-Switch TL3701AF100QG
Product Information
Operating Force:
100gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
0.65mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL3701AF100QG Models
edacadModelUrl:
/en/models/10491473
Illumination Type, Color:
-
Outline:
3.00mm x 2.60mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
13 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3701
Switch Travel:
0.15mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
TL3701
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TL3701AF100QG on website for other similar products.
We accept all major payment methods for all products including ET18372960. Please check your shopping cart at the time of order.
You can order E-Switch brand products with TL3701AF100QG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of E-Switch TL3701AF100QG. You can also check on our website or by contacting our customer support team for further order details on E-Switch TL3701AF100QG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18372960 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "E-Switch" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18372960.
Yes. We ship TL3701AF100QG Internationally to many countries around the world.
This is manufactured by E-Switch. The manufacturer part number is TL3701AF100QG. It has a 100gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 0.65mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 3.00mm x 2.60mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 13 weeks standard lead time. The product is available in surface mount configuration. The product tl3701, is a highly preferred choice for users. The product has a switching travel of 0.15mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to tl3701, a base product number of the product. The product is designated with the ear99 code number.
