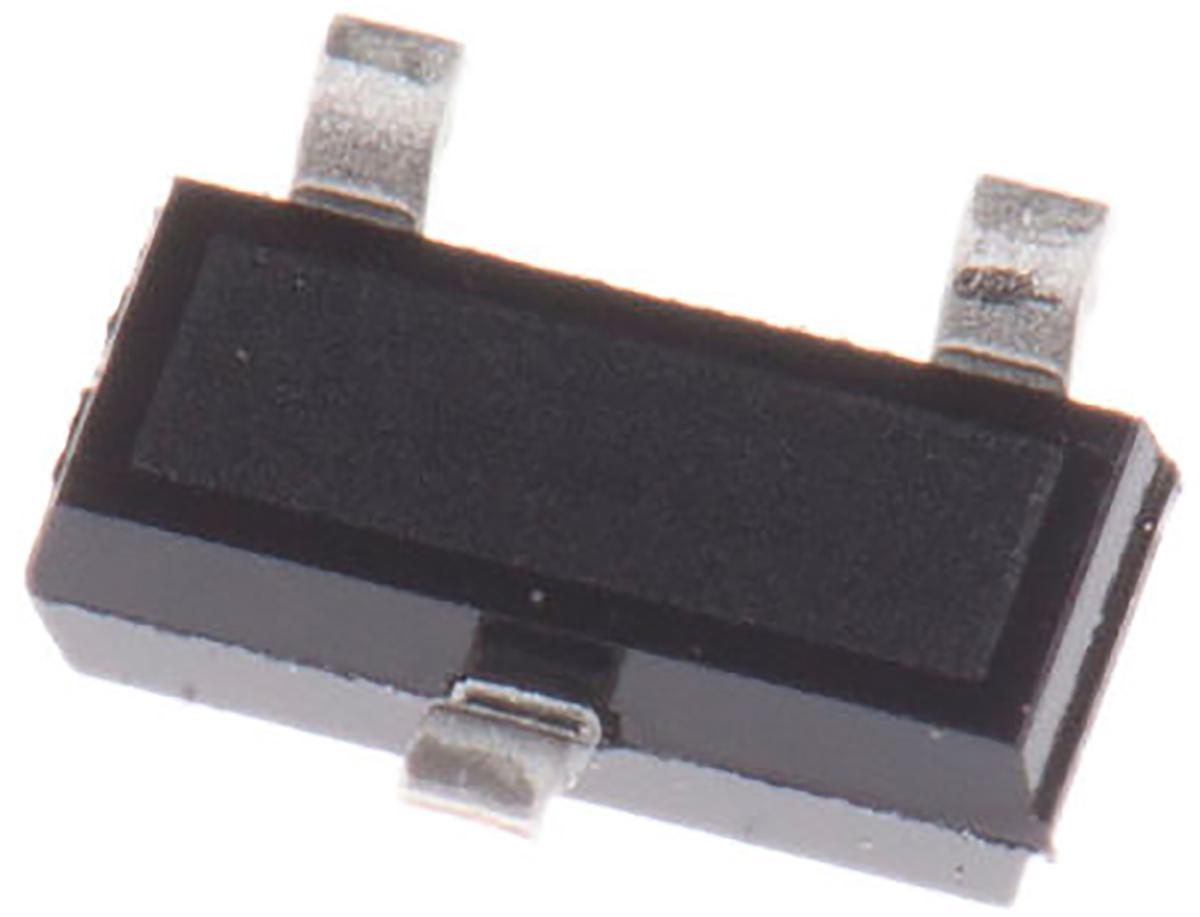

ROHM BAW56HMT116 Dual Switching Diode, Common Anode, 215mA 100V, 3-Pin SOT-23

BAW56HMT116 ROHM Dual Switching Diode, Common Anode, 215mA 100V, 3-Pin SOT-23
BAW56HMT116
ROHM

Product Information

Maximum Diode Capacitance:
2pF
Maximum Operating Temperature:
+150 °C
Dimensions:
3.1 x 1.5 x 1.15mm
Mounting Type:
Surface Mount
Diode Technology:
Silicon Junction
Maximum Forward Current:
215mA
Maximum Series Resistance @ Maximum IF:
100 Ω @ 10 mA
Maximum Forward Voltage Drop:
1.25V
Height:
1.15mm
Width:
1.5mm
Length:
3.1mm
Package Type:
SOT-23
Number of Elements per Chip:
2
Maximum Reverse Voltage:
100V
Power Dissipation:
250mW
Diode Configuration:
Common Anode
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Dual Switching Diode Common Anode 215mA 100V 3-Pin SOT-23 manufactured by ROHM. The manufacturer part number is BAW56HMT116. It has a maximum 2pf diode capacitance . It has a maximum operating temperature of +150 °c. The given dimensions of the product include 3.1 x 1.5 x 1.15mm. The product is available in surface mount configuration. The product utilizes silicon junction diode technology. Moreover, the product has a maximum 215ma forward current . It has a maximum 100 ω @ 10 ma series resistance @ maximum IF . It features 1.25v of maximum forward voltage drop. In addition, the height is 1.15mm. Furthermore, the product is 1.5mm wide. Its accurate length is 3.1mm. The package is a sort of sot-23. It consists of 2 elements per chip. Moreover, the product has a maximum 100v reverse voltage . It has about 250mw power dissipation . The diode features a common anode configuration. It contains 3 pins.

pdf icon
BAW56HM, Switching Diode (High Speed Switching)(Technical Reference)
