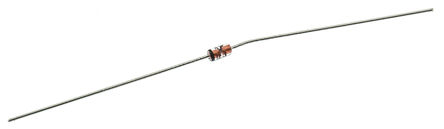

This is Switching Diode 300mA 75V 2-Pin DO-35 manufactured by Vishay. The manufacturer part number is 1N4148-TAP. It has a maximum 4pf diode capacitance . Its diameter is 1.75mm. The given dimensions of the product include 1.75 (dia.) x 3.4mm. The product is available in through hole configuration. The product utilizes silicon junction diode technology. Moreover, the product has a maximum 300ma forward current . It features 1v of maximum forward voltage drop. In addition, the height is 1.7mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.4mm. The package is a sort of do-35. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Moreover, the product has a maximum 75v reverse voltage . It has a maximum operating temperature of +175 °c. The diode features a single configuration. It contains 2 pins.
Application Note- Trim and Form Process Reccomendation(Technical Reference)
Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)
Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)
Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Comp(Technical Reference)
Datasheet(Technical Reference)
General Information(Technical Reference)
Application Note- Rectifiers for Power Factor Correction(Technical Reference)
Diodes Group Body Marking(Technical Reference)
Application Note- Fundamentals of Rectifiers(Technical Reference)
Pre-Mounting Process(Technical Reference)
Application Note- High Speed Data Line Protection(Technical Reference)
