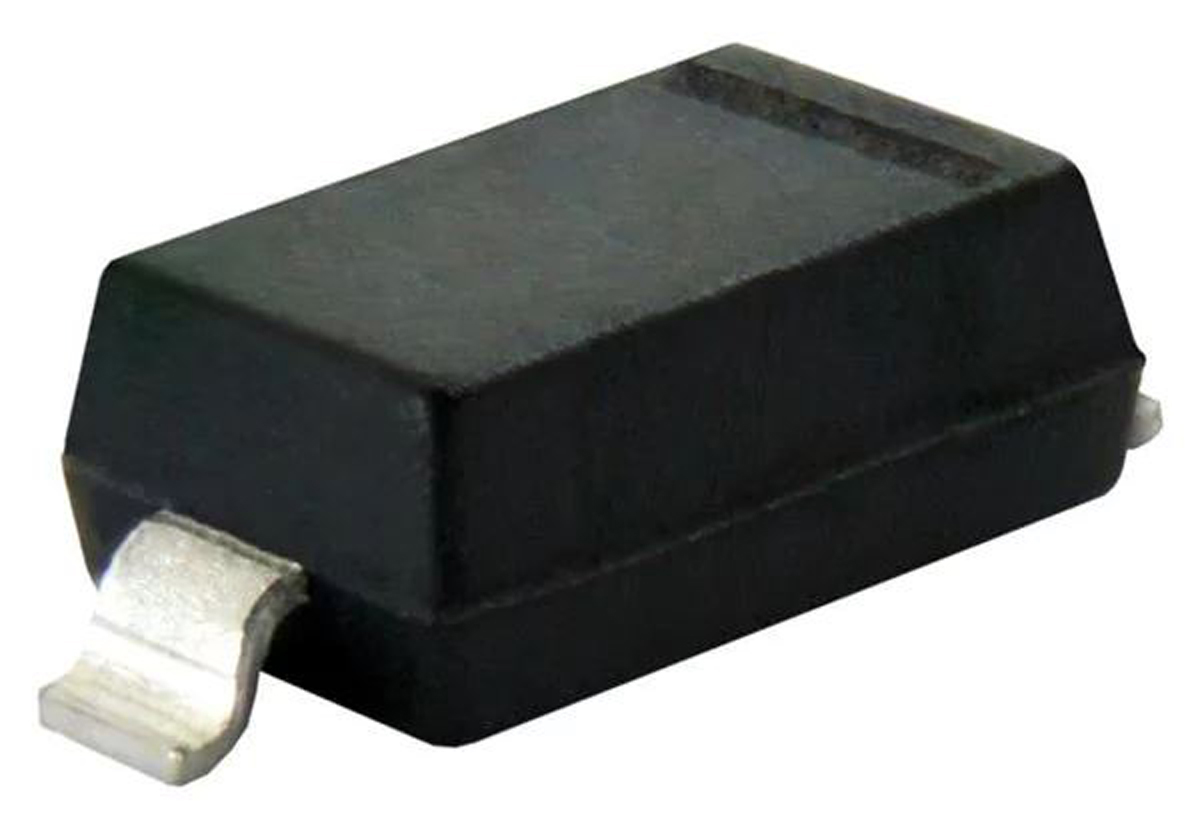

Vishay 1N4148W-E3-08 Small Signal Diode, 2-Pin SOD-123

1N4148W-E3-08 Vishay Small Signal Diode, 2-Pin SOD-123
1N4148W-E3-08 Vishay Small Signal Diode, 2-Pin SOD-123
Vishay

Product Information

Automotive Standard:
No
Maximum Power Dissipation Pd:
350mW
Maximum Operating Temperature:
150°C
Maximum Forward Current If:
150mA
Sub Type:
Silicon Junction
Maximum Peak Reverse Repetitive Voltage Vrrm:
75V
Peak Non-Repetitive Forward Surge Current Ifsm:
500mA
Height:
1.25mm
Peak Reverse Recovery Time trr:
4ns
Width:
1.7 mm
Length:
2.85mm
Package Type:
SOD-123
Minimum Operating Temperature:
-55°C
Maximum Forward Voltage Vf:
1.2V
Standards/Approvals:
No
Product Type:
Switching Diode
Diode Configuration:
Single
Pin Count:
2
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is Small Signal Diode 2-Pin SOD-123 manufactured by Vishay. The manufacturer part number is 1N4148W-E3-08. The product complies with automotive standard - no. It has a maximum operating temperature of 150°c. Its sub type is silicon junction . In addition, the height is 1.25mm. Furthermore, the product is 1.7 mm wide. Its accurate length is 2.85mm. The package is a sort of sod-123. Whereas, the minimum operating temperature of the product is -55°c. switching diode is a versatile product designed to provide user-defined applications. The diode features a single configuration. It contains 2 pins. It has a surface type mount .

pdf icon
Application Note- Design Guidelines for Schottky Rectifiers(Technical Reference)
pdf icon
Application Note- Physical Explanation(Technical Reference)
pdf icon
Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Comp(Technical Reference)
pdf icon
Application Note- Trim and Form Process Reccomendation(Technical Reference)
pdf icon
Application Note- Power Factor Correction with Ultrafast Diodes(Technical Reference)
pdf icon
Application Note- Rectifiers for Power Factor Correction(Technical Reference)
pdf icon
1N4148W, Small Signal Fast Switching Diode(Technical Reference)
pdf icon
Diodes Group Body Marking(Technical Reference)
pdf icon
Application Note- Fundamentals of Rectifiers(Technical Reference)
pdf icon
Application Note- High Speed Data Line Protection(Technical Reference)
