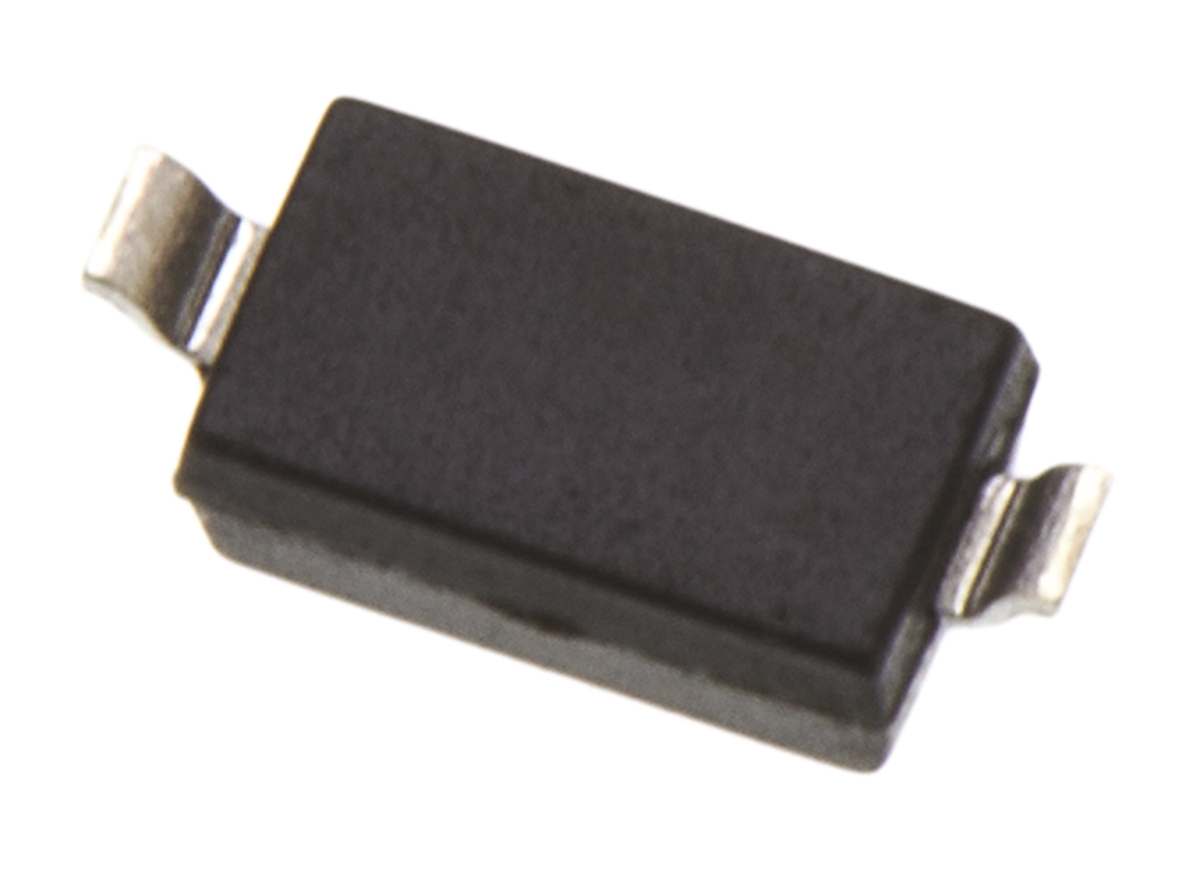

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : DiodesZetex
Manufacturer Part No : 1N4148W-7-F
Enrgtech Part No : ET10003127
Product Range : PolySwitch RXEF Series

Diodes Inc 1N4148W-7-F Switching Diode 100V, 2-Pin SOD-123

Small Signal Switching Diodes, Diodes Inc Diodes and Rectifiers, Diodes Inc

Product Information

Mounting Type : Surface Mount
Maximum Forward Current : 300mA
Maximum Forward Voltage Drop : 1.25V
Diode Technology : Silicon Junction
Package Type : SOD-123
Number of Elements per Chip : 1
Maximum Reverse Voltage : 100V
Diode Configuration : Single
Pin Count : 2
rohs : RoHS Certificate of Compliance

Technical Documents

  • Datasheet (Technical Reference)

Availability:
23800
in stock
Check now

Rate:
  • 200-800
    +
    £ 0.038
  • 1000-1800
    +
    £ 0.036
  • 2000-4800
    +
    £ 0.034

Qty:
