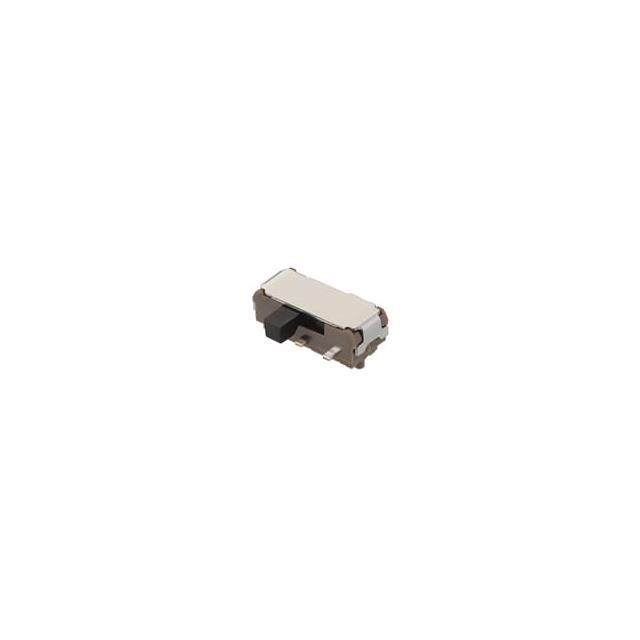

Surface Mount Slide Switch Single Pole Double Throw (SPDT) Latching 300 mA Slide
Product Information
Contact Resistance:
130 (After Lifetime) mΩ, 70 (Initial) mΩ
Dimensions:
9 x 5.5 x 3.5mm
Mounting Type:
Surface Mount
Voltage Rating:
6V dc
Contact Current Rating:
300 mA
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +85°C
Length:
9mm
Contact Configuration:
SPDT
Width:
5.5mm
Depth:
3.5mm
Actuator Type:
Slide
Mechanical Life:
10000Cycles
Maximum Operating Temperature:
+85°C
Terminal Type:
Solder
Switch Operation:
Latching
Operating Force:
153gf
HTSUS:
8536.50.9050
RoHS Status:
ROHS3 Compliant
Electrical Life:
10,000 Cycles
Termination Style:
Gull Wing
Voltage Rating - DC:
6 V
Operating Temperature:
-40°C ~ 85°C
Mechanical Life:
10,000 Cycles
Actuator Length:
2.00mm
Package:
Tape & Reel (TR)
Switch Function:
On-On
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
300mA (DC)
Contact Timing:
Non-Shorting (BBM)
Features:
-
Mounting Type:
Surface Mount
Series:
SSSS2
Switch Travel:
2.00mm
Actuator Type:
Standard
Contact Material:
-
Actuator Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SSSS211603 on website for other similar products.
We accept all major payment methods for all products including ET18215318. Please check your shopping cart at the time of order.
You can order Alps Alpine brand products with SSSS211603 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Slide Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Surface Mount Slide Switch Single Pole Double Throw (SPDT) Latching 300 mA Slide. You can also check on our website or by contacting our customer support team for further order details on Surface Mount Slide Switch Single Pole Double Throw (SPDT) Latching 300 mA Slide.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18215318 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Alps Alpine" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18215318.
Yes. We ship SSSS211603 Internationally to many countries around the world.
This is Surface Mount Slide Switch Single Pole Double Throw (SPDT) Latching 300 mA Slide manufactured by Alps Alpine. The manufacturer part number is SSSS211603. It features a 130 (after lifetime) mω, 70 (initial) mω contact resistance. The given dimensions of the product include 9 x 5.5 x 3.5mm. The product is available in surface mount configuration. Moreover, the product has a nominal 6v dc voltage rating. The rated contact current is 300 ma. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +85°c of operating temperature range. Its accurate length is 9mm. The contact is equipped with spdt configuration. Furthermore, the product is 5.5mm wide. The product comes in 3.5mm depth. The product carries slide actuator. The product also provide mechanical stability with 10000cycles. It has a maximum operating temperature of +85°c. The terminal is a solder type. It provides latching switch operation. It has a 153gf of operating force. It is assigned with possible HTSUS value of 8536.50.9050. The product is rohs3 compliant. The product offers long-lasting services of 10,000 cycles. Moreover, it has gull wing terminal style. 6 v of DC voltage rating. The product has -40°c ~ 85°c operating temperature range. The product also provide mechanical stability with 10,000 cycles. The actuator is a 2.00mm long. It is shipped in tape & reel (tr) package . It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 300ma (dc). Contact Timing Options: non-shorting (bbm). The product ssss2, is a highly preferred choice for users. The product has a switching travel of 2.00mm. The product carries standard actuator. The product is designated with the ear99 code number.
