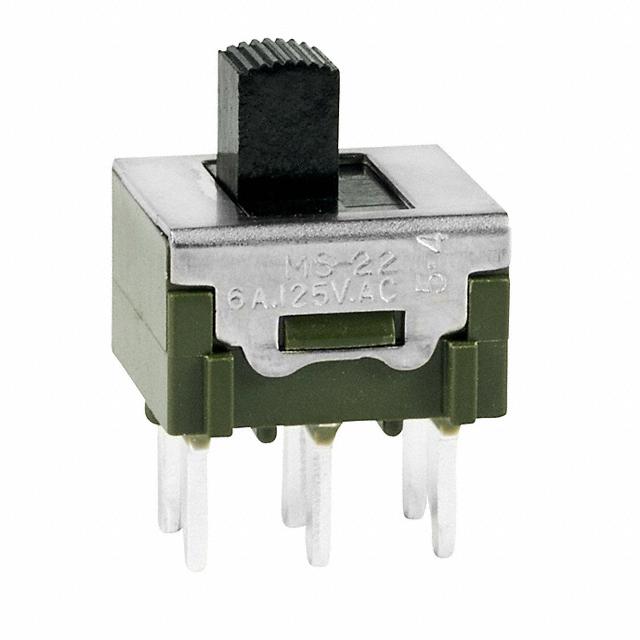

MS22ANW03, NKK Switches

MS22ANW03 NKK Switches
NKK Switches

Product Information

Contact Resistance:
12.7 x 11.4 x 12.7mm
Mounting Type:
Voltage Rating:
125 V ac, 250 V ac
Contact Current Rating:
3 A @ 250 V ac, 6 A @ 125 V ac
Minimum Operating Temperature:
Contact Configuration:
Double Pole Double Throw (DPDT)
Actuator Material:
Glass Fibre Reinforced PBT Resin
Actuator Type:
Operating Temperature Range:
-30 → +85°C
Switch Operation:
Maximum Operating Temperature:
Terminal Type:
Straight PC Pin
Contact Material:
Silver Alloy
Operating Force:
RoHS Status:
ROHS3 Compliant
Electrical Life:
25,000 Cycles
Termination Style:
PC Pin
Operating Temperature:
-30°C ~ 85°C
Mechanical Life:
100,000 Cycles
Actuator Length:
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
MS22ANW03 Models
Switch Function:
Contact Finish:
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current Rating (Amps):
6A (AC)
Contact Timing:
Non-Shorting (BBM)
Epoxy Sealed Terminals
Mounting Type:
Through Hole
Switch Travel:
Actuator Type:
Contact Material:
Silver Alloy
Actuator Material:
Polybutylene Terephthalate (PBT), Glass Filled
Base Product Number:
RoHs Compliant
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is MS22ANW03. It features a 10mω contact resistance. The given dimensions of the product include 12.7 x 11.4 x 12.7mm. The product is available in pcb configuration. Moreover, the product has a nominal 125 v ac, 250 v ac voltage rating. The rated contact current is 3 a @ 250 v ac, 6 a @ 125 v ac. Whereas, the minimum operating temperature of the product is -30°c. The contact is equipped with double pole double throw (dpdt) configuration. The actuator is designed from sturdy glass fibre reinforced pbt resin material. The product carries top actuator. The product has -30 → +85°c of operating temperature range. It provides latching switch operation. It has a maximum operating temperature of +85°c. The terminal is a straight pc pin type. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.50.9050. The product is rohs3 compliant. The product offers long-lasting services of 25,000 cycles. Moreover, it has pc pin terminal style. The product has -30°c ~ 85°c operating temperature range. The product also provide mechanical stability with 100,000 cycles. The actuator is a 5.10mm long. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a on-on switching function. Furthermore, the product is galvanized with excellent silver contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt circuit. Additionally, the product's output is 6a (ac). Contact Timing Options: non-shorting (bbm). The splendid features of the product include epoxy sealed terminals. The product is available in through hole configuration. The product ms, is a highly preferred choice for users. The product has a switching travel of 2.20mm. The product carries standard actuator. The actuator is designed from sturdy polybutylene terephthalate (pbt), glass filled material. Moreover, it corresponds to ms22anw, a base product number of the product. The product is designated with the ear99 code number.
