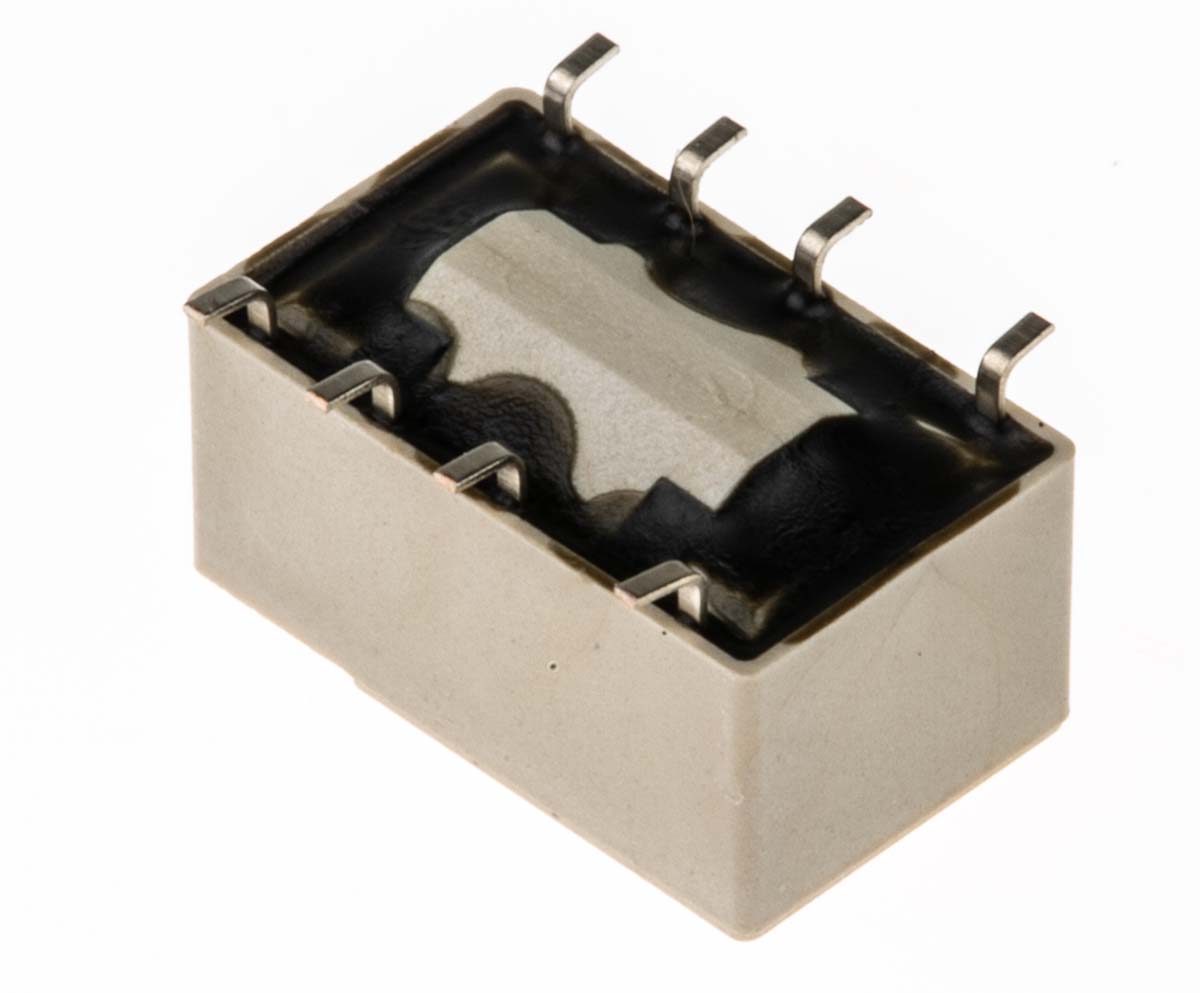

TE Connectivity DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A

IM23GR-2-1462039-9 TE Connectivity DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 2 A
IM23GR 2-1462039-9
IM23GR 2-1462039-9
TE Connectivity

Product Information

Dimensions:
10 x 6 x 5.65mm
Coil Voltage:
5V dc
Application:
Signal
Terminal Type:
Through Hole
Coil Resistance:
500Ω
Coil Power:
50mW
Maximum Switching Voltage DC:
220V dc
Maximum Switching Power DC:
60 W
Maximum Operating Temperature:
+85°C
Switching Current:
2A
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Length:
10mm
Features:
Bifurcated Contacts, Low Coil Power Consumption
Mounting Type:
Surface Mount
Series:
IM
Depth:
6mm
Height:
5.65mm
Maximum Switching Current DC:
2 A
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay PCB Mount 5V dc Coil 2 A manufactured by TE Connectivity. The manufacturer part number is IM23GR 2-1462039-9. The given dimensions of the product include 10 x 6 x 5.65mm. The coil voltage of the product is 5v dc. Applications Information involves signal. The terminal is a through hole type. It holds up to 500ω coil resistance. Robust coil power of 50mw. While it carries 220v dc of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. Its accurate length is 10mm. The splendid features of the product include bifurcated contacts, low coil power consumption. The product is available in surface mount configuration. The product im, is a highly preferred choice for users. The product comes in 6mm depth. In addition, the height is 5.65mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. It has equipped with 2 poles. The product is made from sturdy gold plated materials.
