TE Connectivity DPDT PCB Mount Non-Latching Relay, 5V dc Coil, 2 A

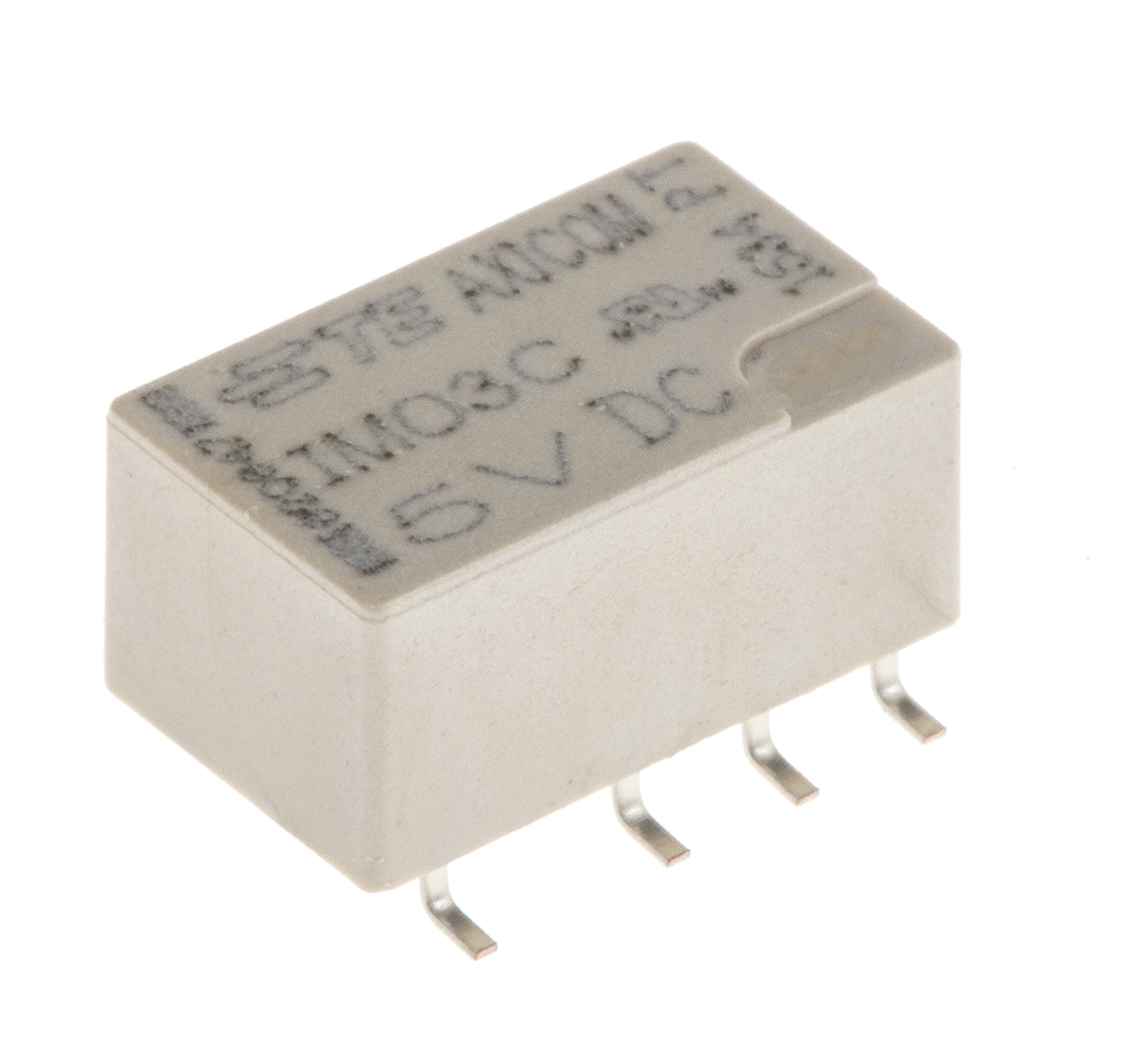

IM03CGR TE Connectivity DPDT PCB Mount Non-Latching Relay, 5V dc Coil, 2 A
IM03CGR TE Connectivity DPDT PCB Mount Non-Latching Relay, 5V dc Coil, 2 A
TE Connectivity

Product Information

Switching Power:
62.5VA
Switching AC Voltage:
250 V ac
Switching DC Voltage:
220 V dc
Coil Power:
140mW
Series:
IM
Switching Current:
2 A
Coil Voltage:
5 V dc
Coil Resistance:
178Ω
Height:
5.65mm
Width:
6 mm
Length:
10mm
Standards/Approvals:
RoHS
Minimum Operating Temperature:
-40°C
Contact Material:
Palladium, Ruthenium
Contact Configuration:
DPDT
Product Type:
Signal Relay
Maximum Operating Temperature:
85°C
Terminal Type:
Solder
Mount Type:
Surface
HTSUS:
8536.41.0050
Package:
Tape & Reel (TR)
Series:
*
RoHS Status:
RoHS Compliant
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Non-Latching Relay 5V dc Coil 2 A manufactured by TE Connectivity. The manufacturer part number is IM03CGR. Robust coil power of 140mw. The product im, is a highly preferred choice for users. It is integrated with 2 a switching current. The coil voltage of the product is 5 v dc. It holds up to 178ω coil resistance. In addition, the height is 5.65mm. Furthermore, the product is 6 mm wide. Its accurate length is 10mm. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy palladium, ruthenium materials. The contact is equipped with dpdt configuration. signal relay is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 85°c. The terminal is a solder type. It has a surface type mount . It is assigned with possible HTSUS value of 8536.41.0050. It is shipped in tape & reel (tr) package . The product is rohs compliant. The product is designated with the ear99 code number.
