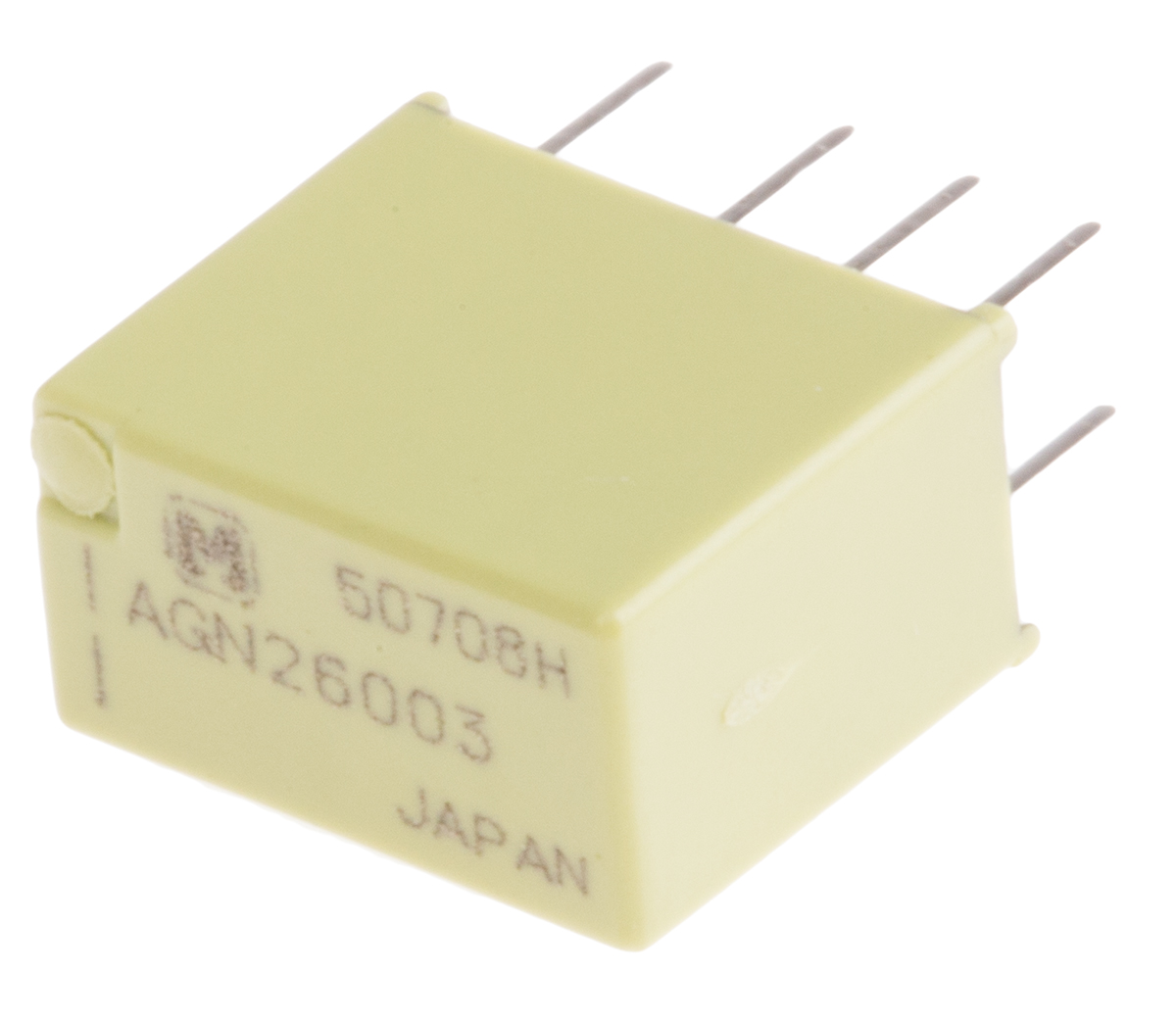

Panasonic DPDT Non-Latching Relay PCB Mount, 3V dc Coil, 1 A
Product Information
Dimensions:
10 x 5.2 x 7.2mm
Electrical Life:
100000 Operations Cycles
Application:
Power
Terminal Type:
PCB Pin
Coil Resistance:
90Ω
Life:
100000 (Electrical) cycles, 50000000 (Mechanical) cycles
Coil Power:
100mW
Maximum Switching Voltage DC:
110V
Maximum Switching Power DC:
30 W
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+85°C
Switching Current:
1A
Maximum Switching Current AC:
0.3 A
Coil Voltage:
3V dc
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Depth:
5.7mm
Features:
Compact Slim Body Saves Space, Increased Packaging Density, Sealed Construction allows Automatic Washing.
Mounting Type:
Surface Mount
Series:
FTR-B3
Length:
10.9mm
Height:
9mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
125V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
37.5VA
Number of Poles:
2
Contact Material:
Au Plated AgPd
Checking for live stock
FAQs
Yes. You can also search AGN26003 on website for other similar products.
We accept all major payment methods for all products including ET14099144. Please check your shopping cart at the time of order.
You can order Panasonic brand products with AGN26003 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Signal Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic DPDT Non-Latching Relay PCB Mount, 3V dc Coil, 1 A. You can also check on our website or by contacting our customer support team for further order details on Panasonic DPDT Non-Latching Relay PCB Mount, 3V dc Coil, 1 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14099144 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14099144.
Yes. We ship AGN26003 Internationally to many countries around the world.
This is DPDT Non-Latching Relay PCB Mount 3V dc Coil 1 A manufactured by Panasonic. The manufacturer part number is AGN26003. The given dimensions of the product include 10 x 5.2 x 7.2mm. The product offers long-lasting services of 100000 operations cycles. Applications Information involves power. The terminal is a pcb pin type. It holds up to 90ω coil resistance. It is capable of doing 100000 (electrical) cycles, 50000000 (mechanical) cycles in a lifetime . Robust coil power of 100mw. While it carries 110v of maximum DC switching voltage. It bears a maximum 30 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 1a switching current. It has a maximum 0.3 a switching current AC . The coil voltage of the product is 3v dc. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 5.7mm depth. The splendid features of the product include compact slim body saves space, increased packaging density, sealed construction allows automatic washing.. The product is available in surface mount configuration. The product ftr-b3, is a highly preferred choice for users. Its accurate length is 10.9mm. In addition, the height is 9mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 125v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 37.5va. It has equipped with 2 poles. The product is made from sturdy au plated agpd materials.
