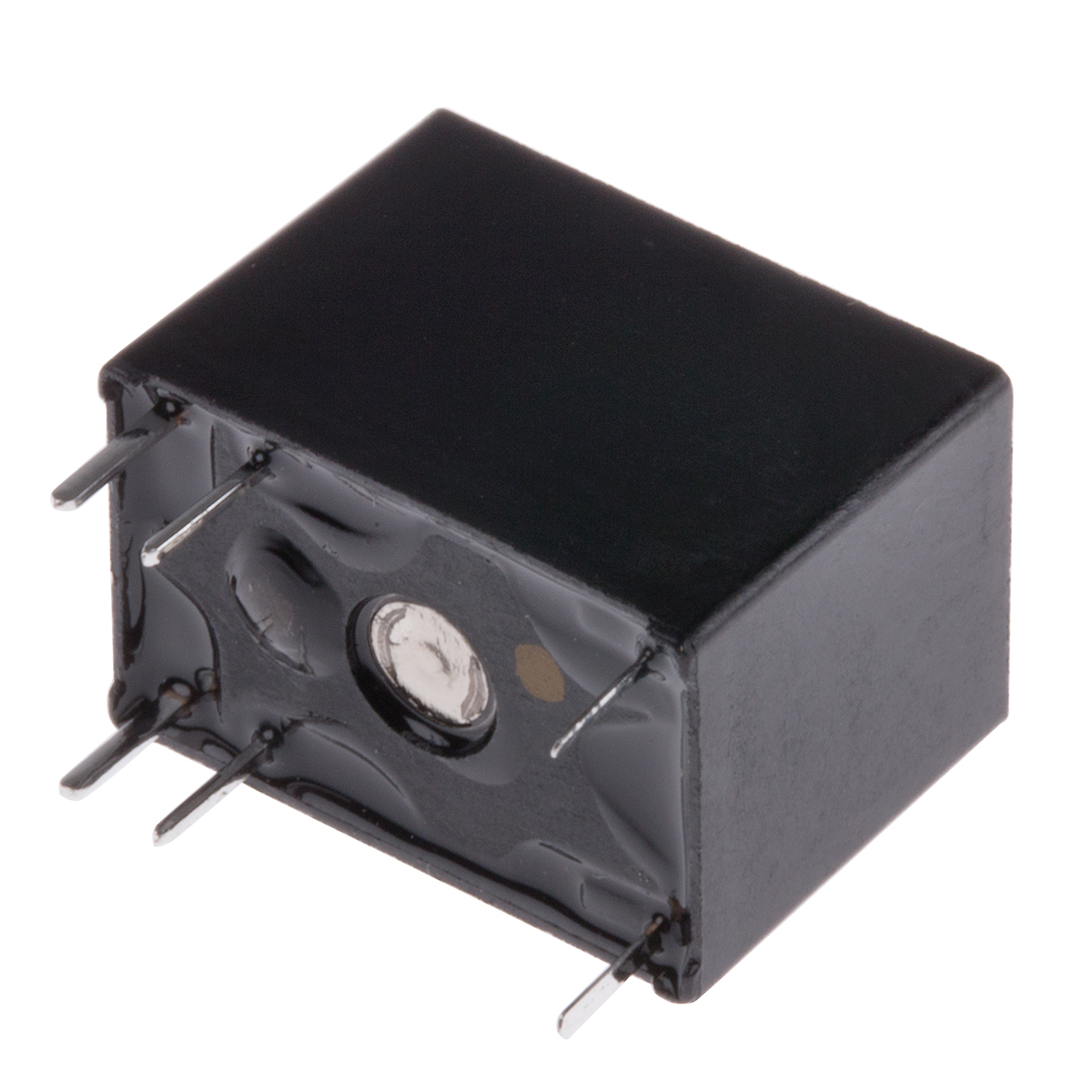

This is SPDT Non-Latching Relay PCB Mount 5V dc Coil 1 A manufactured by TE Connectivity. The manufacturer part number is V23101D3A201. The given dimensions of the product include 15.4 x 11.5 x 10mm. The coil voltage of the product is 5v dc. Applications Information involves signal. The terminal is a surface mount type. It holds up to 56ω coil resistance. It is capable of doing 10000000 cycles, 10000000 (mechanical) cycles in a lifetime . Robust coil power of 446mw. While it carries 120v dc of maximum DC switching voltage. It bears a maximum 30 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 1.25a switching current. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with spst configuration. The product comes in 10mm depth. The splendid features of the product include multi purpose relay, immersion cleanable. The product is available in pcb mount configuration. The product axicom p3, is a highly preferred choice for users. Its accurate length is 15.4mm. In addition, the height is 11.5mm. It has a minimum 1.25 a DC switching current . It has a maximum AC switching voltage of 125v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 62.5va. It has equipped with 1 poles. The product is made from sturdy gold plated materials. It is assigned with possible HTSUS value of 8536.49.0080. It is shipped in tube package . The product is rohs compliant. The product is designated with the ear99 code number.
For more information please check the datasheets.
