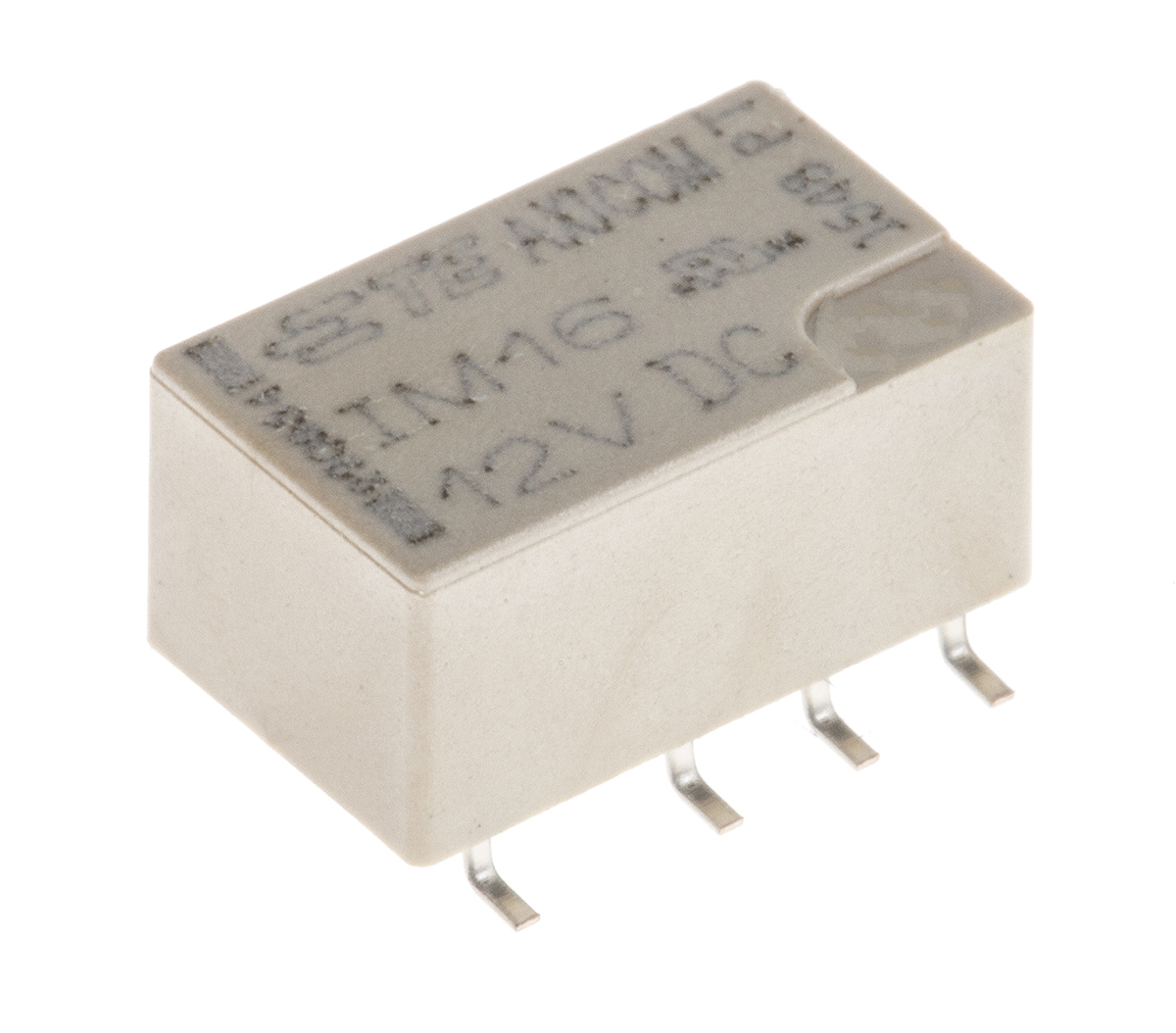

This is DPDT Non-Latching Relay PCB Mount 12V dc Coil 2 A manufactured by TE Connectivity. The manufacturer part number is IM16GR. The given dimensions of the product include 10 x 6 x 5.65mm. The coil voltage of the product is 12v dc. Applications Information involves signal. The terminal is a through hole type. It holds up to 1165ω coil resistance. Robust coil power of 110mw. While it carries 220v dc of maximum DC switching voltage. It bears a maximum 60 w of DC switching power. It has a maximum operating temperature of +85°c. It is integrated with 2a switching current. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. Its accurate length is 10mm. The splendid features of the product include bifurcated contacts, low coil power consumption. The product is available in surface mount configuration. The product im, is a highly preferred choice for users. The product comes in 6mm depth. In addition, the height is 5.65mm. It has a minimum 2 a DC switching current . It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 60va. It has equipped with 2 poles. The product is made from sturdy gold plated, rhodium plated palladium nickel materials.
For more information please check the datasheets.
