Dimensions:
10 x 5.2 x 7.2mm
Electrical Life:
100000 Operations Cycles
Application:
General Purpose
Terminal Type:
PCB Pin
Coil Resistance:
1028Ω
Coil Power:
140mW
Maximum Switching Voltage DC:
110V
Maximum Switching Power DC:
30 W
Isolation Coil To Contact:
2.5kV
Maximum Operating Temperature:
+85°C
Switching Current:
1A
Maximum Switching Current AC:
0.3 A
Coil Voltage:
12V dc
Operating Temperature Range:
-40 → +85°C
Latching:
No
Contact Configuration:
DPDT
Length:
10.9mm
Features:
Compact Slim Body Saves Space, Increased Packaging Density, Sealed Construction allows Automatic Washing.
Mounting Type:
PCB Mount
Series:
FTR-B4
Depth:
7.2mm
Height:
5.2mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
125V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
37.5VA
Number of Poles:
2
Contact Material:
Au Plated AgPd

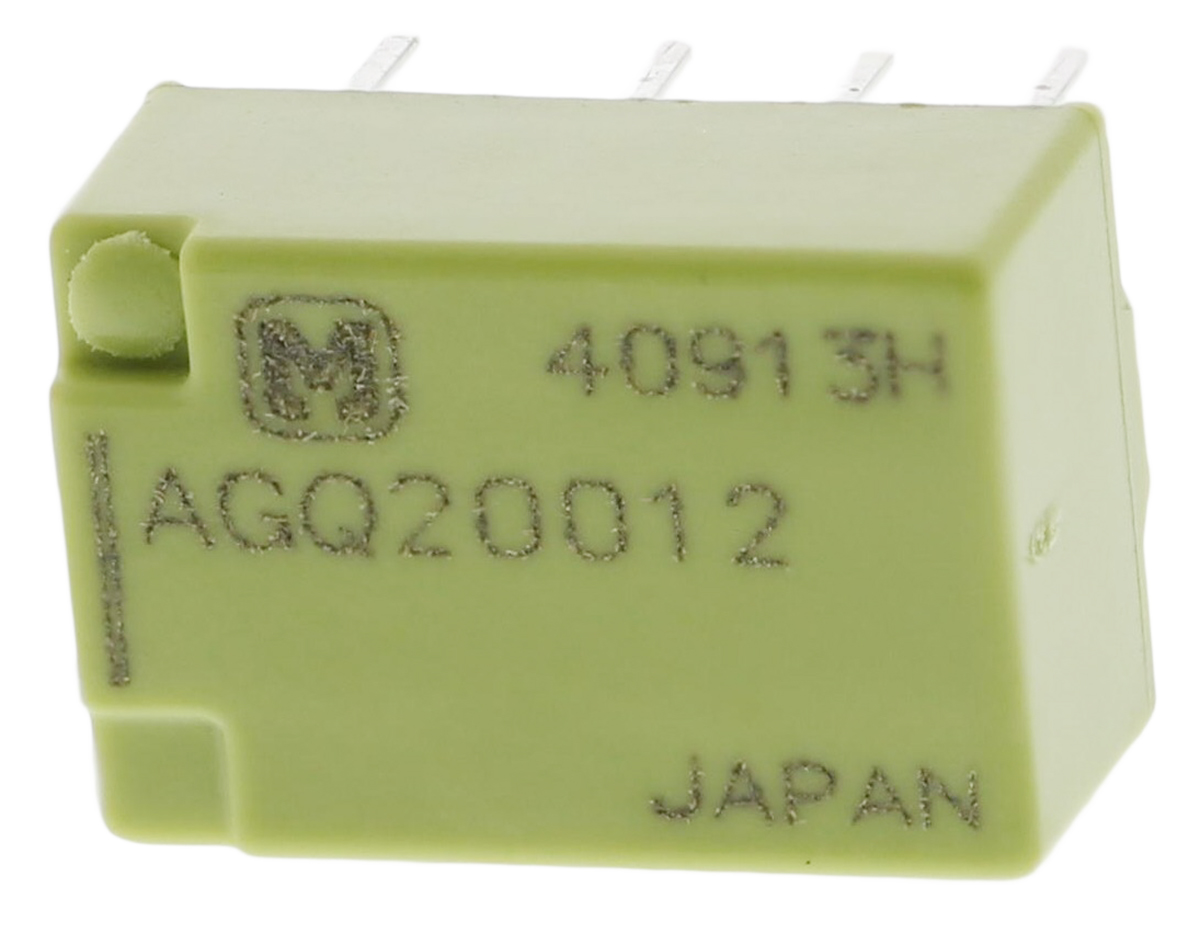

This is DPDT Non-Latching Relay PCB Mount 12V dc Coil manufactured by Panasonic. The manufacturer part number is AGQ20012. The given dimensions of the product include 10 x 5.2 x 7.2mm. The product offers long-lasting services of 100000 operations cycles. Applications Information involves general purpose. The terminal is a pcb pin type. It holds up to 1028ω coil resistance. Robust coil power of 140mw. While it carries 110v of maximum DC switching voltage. It bears a maximum 30 w of DC switching power. The product has 2.5kv isolation coil to contact. It has a maximum operating temperature of +85°c. It is integrated with 1a switching current. It has a maximum 0.3 a switching current AC . The coil voltage of the product is 12v dc. The product has -40 → +85°c of operating temperature range. Latching Options - no. The contact is equipped with dpdt configuration. Its accurate length is 10.9mm. The splendid features of the product include compact slim body saves space, increased packaging density, sealed construction allows automatic washing.. The product is available in pcb mount configuration. The product ftr-b4, is a highly preferred choice for users. The product comes in 7.2mm depth. In addition, the height is 5.2mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 125v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 37.5va. It has equipped with 2 poles. The product is made from sturdy au plated agpd materials.
