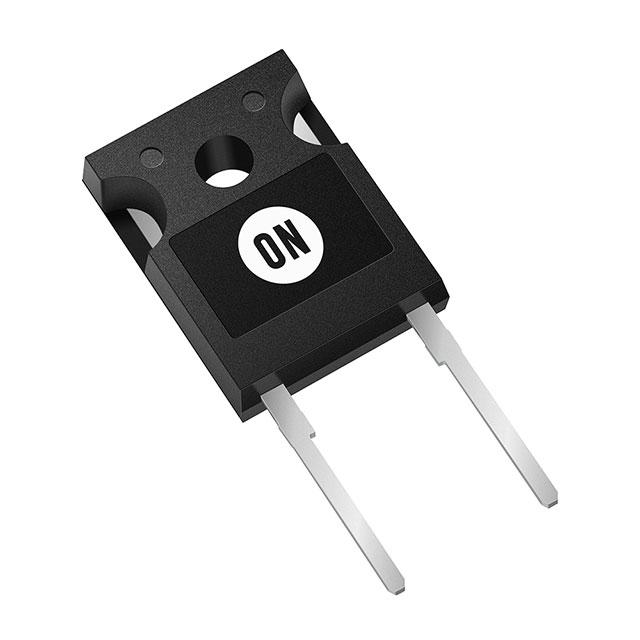

onsemi NDSH25170A
Product Information
Mounting Type:
Through Hole
Diode Technology:
SiC Schottky
Maximum Forward Voltage Drop:
2.8V
Maximum Continuous Forward Current:
35A
Rectifier Type:
Schottky Diode
Package Type:
TO-247
Number of Elements per Chip:
1
Diode Type:
SiC Schottky
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
1700V
Reverse Recovery Time (trr):
0 ns
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-247-2
edacadModel:
NDSH25170A Models
Operating Temperature - Junction:
-55°C ~ 175°C
REACH Status:
REACH Unaffected
edacadModelUrl:
/en/models/10415108
Current - Average Rectified (Io):
25A
Speed:
No Recovery Time > 500mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1.75 V @ 25 A
Package:
Tube
Voltage - DC Reverse (Vr) (Max):
1700 V
Capacitance @ Vr, F:
2025pF @ 1V, 100kHz
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
13 Weeks
Current - Reverse Leakage @ Vr:
40 µA @ 1700 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-247-2
Technology:
SiC (Silicon Carbide) Schottky
Base Product Number:
NDSH25170
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search NDSH25170A on website for other similar products.
We accept all major payment methods for all products including ET21544743. Please check your shopping cart at the time of order.
You can order onsemi brand products with NDSH25170A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Schottky Diodes & Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi NDSH25170A. You can also check on our website or by contacting our customer support team for further order details on onsemi NDSH25170A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21544743 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21544743.
Yes. We ship NDSH25170A Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is NDSH25170A. The product is available in through hole configuration. The product utilizes sic schottky diode technology. It features 2.8v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 35a. This schottky diode product is highly suited for various professionals in various settings. The package is a sort of to-247. It consists of 1 elements per chip. It is designed with a sic schottky diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 1700v. It has a trr (reverse recovery time) of 0 ns. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in to-247-2. The product operate at temperatures ranging from -55°c ~ 175°c. In addition, it is reach unaffected. It features a 25a of average rectified current. It has a robust speed of no recovery time > 500ma (io). The product has a maximum forward voltage of 1.75 v @ 25 a. It is shipped in tube package . While it has maximum reverse voltage of 1700 v. Moreover, the product has a 2025pf @ 1v, 100khz capacitance. Its typical moisture sensitivity level is not applicable. It has a long 13 weeks standard lead time. 40 µa @ 1700 v is the reverse leakage value of a bespoke product. to-247-2 is the supplier device package value. This product use sic (silicon carbide) schottky technology. Moreover, it corresponds to ndsh25170, a base product number of the product. The product is designated with the ear99 code number.
