Automotive Standard:
No
Peak Reverse Current Ir:
5μA
Maximum Operating Temperature:
150°C
Rectifier Type:
General Purpose
Series:
S3A - S3M
Peak Reverse Repetitive Voltage Vrrm:
50V
Maximum Continuous Forward Current If:
3A
Height:
2.75mm
Peak Reverse Recovery Time trr:
2.5μs
Width:
6.25 mm
Length:
7.15mm

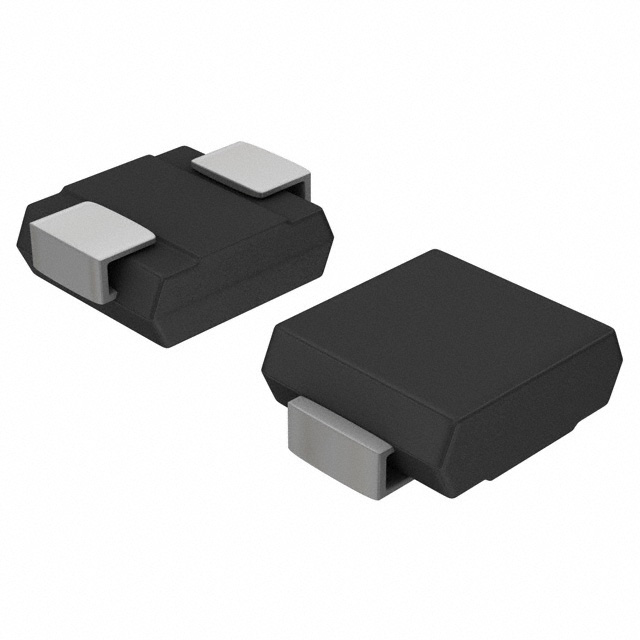

Package Type:
DO-214AB (SMC)
Minimum Operating Temperature:
-55°C
Maximum Forward Voltage Vf:
1.2V
Standards/Approvals:
No
Peak Non-Repetitive Forward Surge Current Ifsm:
100A
Product Type:
General Purpose Rectifiers
Diode Configuration:
Single
Pin Count:
2
Mount Type:
Surface
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
DO-214AB, SMC
Reverse Recovery Time (trr):
2.5 µs
Operating Temperature - Junction:
-55°C ~ 150°C
title:
S3A
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
3A
Speed:
Standard Recovery >500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1.2 V @ 3 A
Voltage - DC Reverse (Vr) (Max):
50 V
Capacitance @ Vr, F:
60pF @ 4V, 1MHz
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
18 Weeks
Current - Reverse Leakage @ Vr:
5 µA @ 50 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
DO-214AB (SMC)
Packaging:
Tape & Reel (TR)
Technology:
Standard
Base Product Number:
S3A
ECCN:
EAR99
