Automotive Standard:
No
Peak Reverse Current Ir:
5μA
Peak Reverse Recovery Time trr:
4ns
Rectifier Type:
Small Signal
Maximum Operating Temperature:
150°C
Maximum Continuous Forward Current If:
150mA
Peak Non-Repetitive Forward Surge Current Ifsm:
4A
Height:
1mm
Width:
1.35 mm
Length:
1.8mm

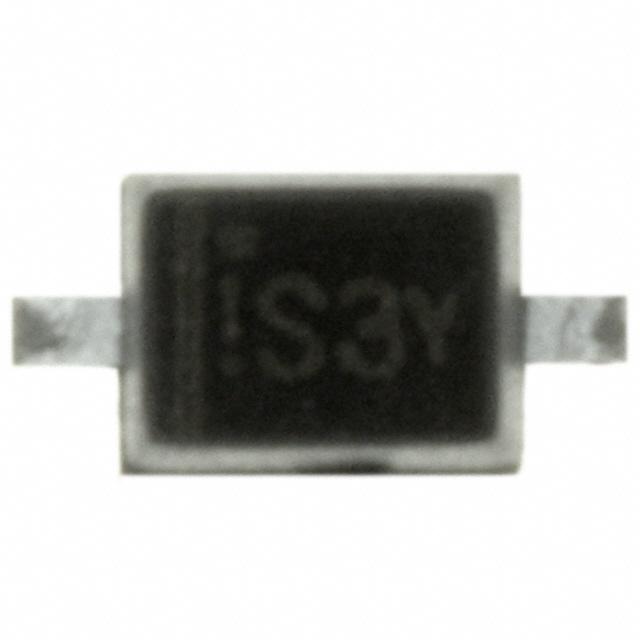

Package Type:
SOD-323
Peak Reverse Repetitive Voltage Vrrm:
75V
Maximum Forward Voltage Vf:
1V
Standards/Approvals:
No
Product Type:
Diode
Diode Configuration:
Single
Pin Count:
2
Mount Type:
Surface
Reverse Recovery Time (trr):
4 ns
HTSUS:
8541.10.0070
RoHS Status:
ROHS3 Compliant
Package / Case:
SC-90, SOD-323F
edacadModel:
1N914BWS Models
Operating Temperature - Junction:
150°C (Max)
REACH Status:
REACH Unaffected
edacadModelUrl:
/en/models/1873807
Current - Average Rectified (Io):
150mA
Speed:
Small Signal =< 200mA (Io), Any Speed
Voltage - Forward (Vf) (Max) @ If:
1 V @ 100 mA
Package:
Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max):
75 V
Capacitance @ Vr, F:
4pF @ 0V, 1MHz
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
22 Weeks
Current - Reverse Leakage @ Vr:
5 µA @ 75 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOD-323F
Technology:
Standard
Base Product Number:
1N914B
ECCN:
EAR99
