Mounting Type:
Through Hole
Diode Technology:
Silicon Junction
Peak Reverse Recovery Time:
200ns
Peak Non-Repetitive Forward Surge Current:
500A
Maximum Forward Voltage Drop:
1.9V
Maximum Continuous Forward Current:
80A
Rectifier Type:
Switching
Package Type:
TO-247
Number of Elements per Chip:
1
Diode Type:
Rectifier
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
1000V
Reverse Recovery Time (trr):
200 ns
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Package / Case:
TO-247-2
edacadModel:
RURG80100 Models
Operating Temperature - Junction:
-65°C ~ 175°C
REACH Status:
REACH Unaffected
edacadModelUrl:
/en/models/458784
Current - Average Rectified (Io):
80A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If:
1.9 V @ 80 A
Package:
Tube
Voltage - DC Reverse (Vr) (Max):
1000 V
Capacitance @ Vr, F:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Reverse Leakage @ Vr:
250 µA @ 1000 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-247-2
Technology:
Avalanche
Base Product Number:
RURG80
ECCN:
EAR99

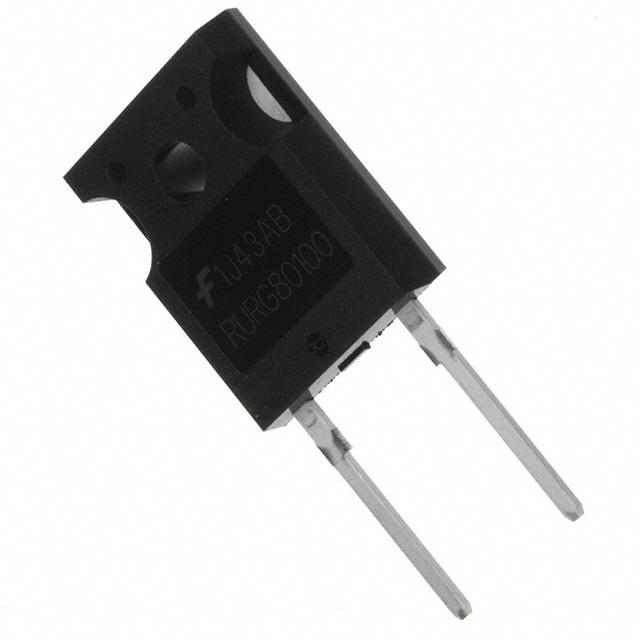

This is 1000V 80A Silicon Junction Diode 2-Pin TO-247 manufactured by onsemi. The manufacturer part number is RURG80100. The product is available in through hole configuration. The product utilizes silicon junction diode technology. Moreover, it has a peak reverse recovery time about 200ns . Moreover, a bespoke product has 500a peak non-repetitive forward surge current. It features 1.9v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 80a. This switching product is highly suited for various professionals in various settings. The package is a sort of to-247. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 1000v. It has a trr (reverse recovery time) of 200 ns. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in to-247-2. The product operate at temperatures ranging from -65°c ~ 175°c. In addition, it is reach unaffected. It features a 80a of average rectified current. It has a robust speed of fast recovery =< 500ns, > 200ma (io). The product has a maximum forward voltage of 1.9 v @ 80 a. It is shipped in tube package . While it has maximum reverse voltage of 1000 v. Its typical moisture sensitivity level is not applicable. 250 µa @ 1000 v is the reverse leakage value of a bespoke product. to-247-2 is the supplier device package value. This product use avalanche technology. Moreover, it corresponds to rurg80, a base product number of the product. The product is designated with the ear99 code number.
