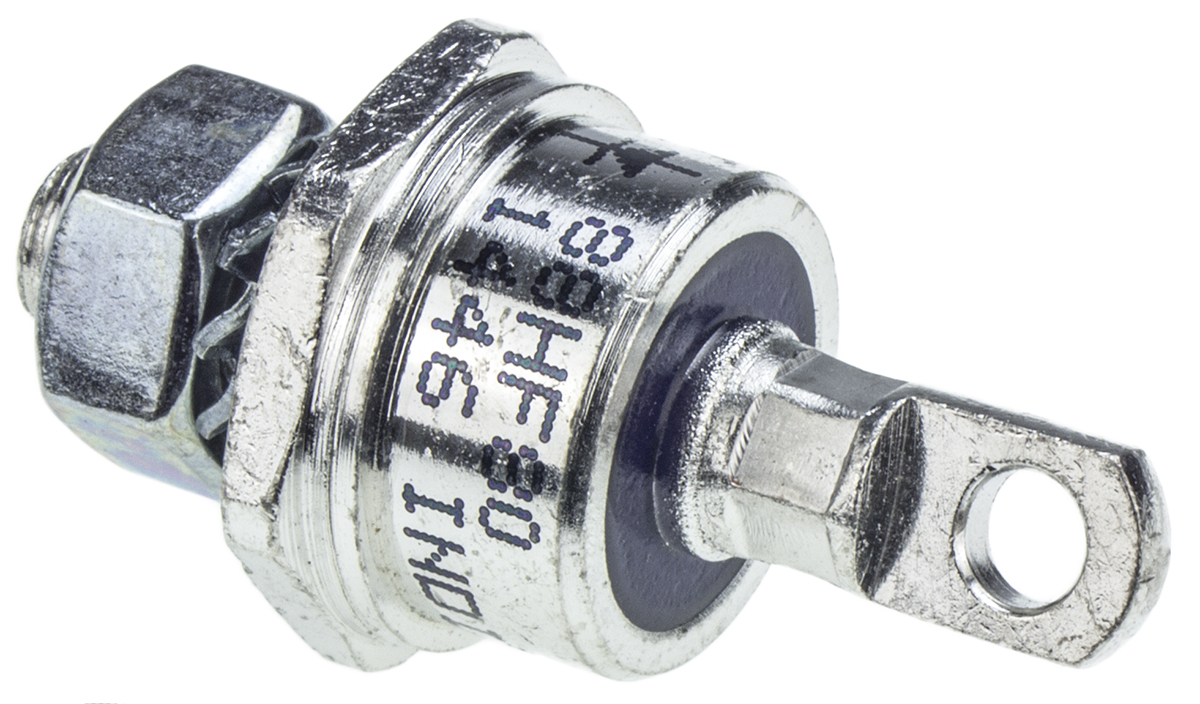

Vishay VS-88HF80 Thread Mount Switching Diode, Stud Cathode, 800V 85A, 2-Pin DO-5

Enrgtech Part No: ET16724308
|
Manufacturer Part No:
VS-88HF80
|
Manufacturer: Vishay

VS-88HF80 Vishay Thread Mount Switching Diode, Stud Cathode, 800V 85A, 2-Pin DO-5

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

1.8kA

Maximum Forward Voltage Drop:

1.2V

Maximum Continuous Forward Current:

85A

Rectifier Type:

Recovery Rectifier

Package Type:

DO-5

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

800V

Checking for live stock

This is Thread Mount Switching Diode Stud Cathode 800V 85A 2-Pin DO-5 manufactured by Vishay. The manufacturer part number is VS-88HF80. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 1.8ka peak non-repetitive forward surge current. It features 1.2v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 85a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of do-5. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 800v.
