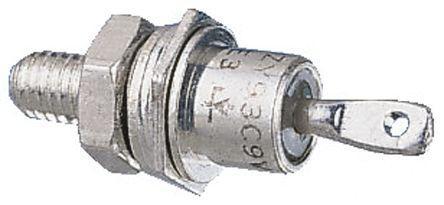

Vishay VS-70HFR40 Thread Mount Diode, Stud Anode, 400V 70A, 2-Pin DO-203AB

Enrgtech Part No: ET16724300
|
Manufacturer Part No:
VS-70HFR40
|
Manufacturer: Vishay

VS-70HFR40 Vishay Thread Mount Diode, Stud Anode, 400V 70A, 2-Pin DO-203AB

Product Information

Mounting Type:

Thread Mount

Diode Technology:

Silicon Junction

Peak Non-Repetitive Forward Surge Current:

1.3kA

Maximum Forward Voltage Drop:

1.35V

Maximum Continuous Forward Current:

70A

Rectifier Type:

Recovery Rectifier

Package Type:

DO-5

Number of Elements per Chip:

Diode Type:

Rectifier

Diode Configuration:

Stud Anode

Pin Count:

Peak Reverse Repetitive Voltage:

400V

Checking for live stock

This is Thread Mount Diode Stud Anode 400V 70A 2-Pin DO-203AB manufactured by Vishay. The manufacturer part number is VS-70HFR40. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Moreover, a bespoke product has 1.3ka peak non-repetitive forward surge current. It features 1.35v of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 70a. This recovery rectifier product is highly suited for various professionals in various settings. The package is a sort of do-5. It consists of 1 elements per chip. It is designed with a rectifier diode. The diode features a stud anode configuration. It contains 2 pins. While having the peak reverse repetitive 400v.
