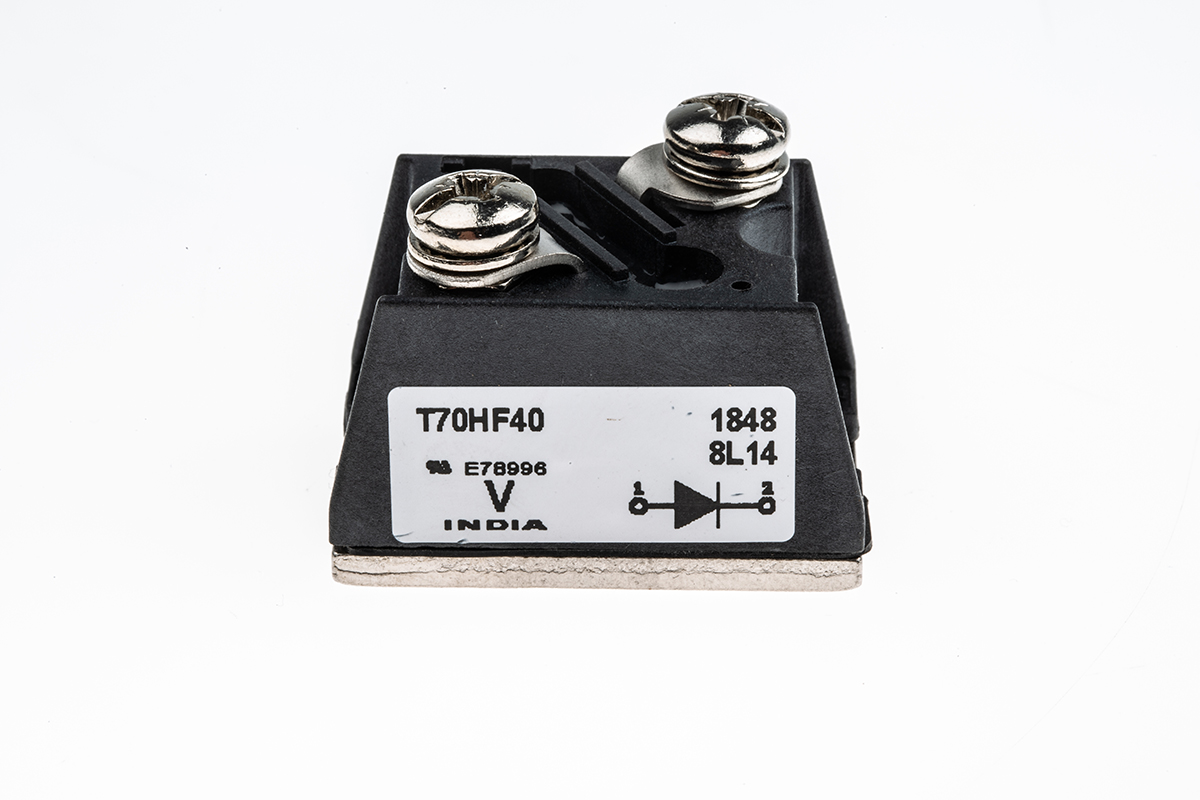

Vishay VS-T70HF40 Switching Diode Module, 400V 70A, 2-Pin T-Module

Enrgtech Part No: ET14131753
|
Manufacturer Part No:
VS-T70HF40
|
Manufacturer: Vishay

VS-T70HF40 Vishay Switching Diode Module, 400V 70A, 2-Pin T-Module

Product Information

Rectifier Type:

Switching

Peak Reverse Repetitive Voltage Vrrm:

400V

Diode Configuration:

Single

Automotive Standard:

Package Type:

T-Module

Maximum Forward Voltage Vf:

1.35V

Product Type:

Diode

Maximum Operating Temperature:

150°C

Maximum Continuous Forward Current If:

70A

Peak Reverse Recovery Time trr:

500ns

Peak Non-Repetitive Forward Surge Current Ifsm:

1.3kA

Length:

41mm

Checking for live stock

This is Switching Diode Module 400V 70A 2-Pin T-Module manufactured by Vishay. The manufacturer part number is VS-T70HF40. This switching product is highly suited for various professionals in various settings. The diode features a single configuration. The product complies with automotive standard - no. The package is a sort of t-module. diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. Its accurate length is 41mm. It contains 2 pins. It has a panel type mount . Its diameter is 25 mm. Furthermore, the product is 27 mm wide. The product vs-t70hf, is a highly preferred choice for users. In addition, the height is 25mm. Whereas, the minimum operating temperature of the product is -40°c.
