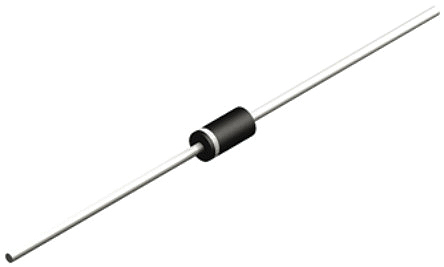

HY Electronic Corp 1N5822 Schottky Diode, 40V 3A, 2-Pin DO-27

1N5822 HY Electronic Corp Schottky Diode, 40V 3A, 2-Pin DO-27
1N5822 HY Electronic Corp Schottky Diode, 40V 3A, 2-Pin DO-27
HY Electronic Corp

Product Information

Automotive Standard:
No
Diameter:
5.6 mm
Peak Reverse Current Ir:
20mA
Maximum Continuous Forward Current If:
3A
Peak Reverse Repetitive Voltage Vrrm:
40V
Series:
FBI
Peak Non-Repetitive Forward Surge Current Ifsm:
80A
Height:
9.5mm
Rectifier Type:
Schottky
Maximum Operating Temperature:
150°C
Package Type:
DO-27
Minimum Operating Temperature:
-55°C
Maximum Forward Voltage Vf:
600mV
Standards/Approvals:
No
Product Type:
Diode
Diode Configuration:
Single
Pin Count:
2
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

This is Schottky Diode 40V 3A 2-Pin DO-27 manufactured by HY Electronic Corp. The manufacturer part number is 1N5822. The product complies with automotive standard - no. Its diameter is 5.6 mm. The product fbi, is a highly preferred choice for users. In addition, the height is 9.5mm. This schottky product is highly suited for various professionals in various settings. It has a maximum operating temperature of 150°c. The package is a sort of do-27. Whereas, the minimum operating temperature of the product is -55°c. diode is a versatile product designed to provide user-defined applications. The diode features a single configuration. It contains 2 pins. It has a through hole type mount .

pdf icon
1N5820 thru 1N5822 Schottky Barrier Rectifier(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
