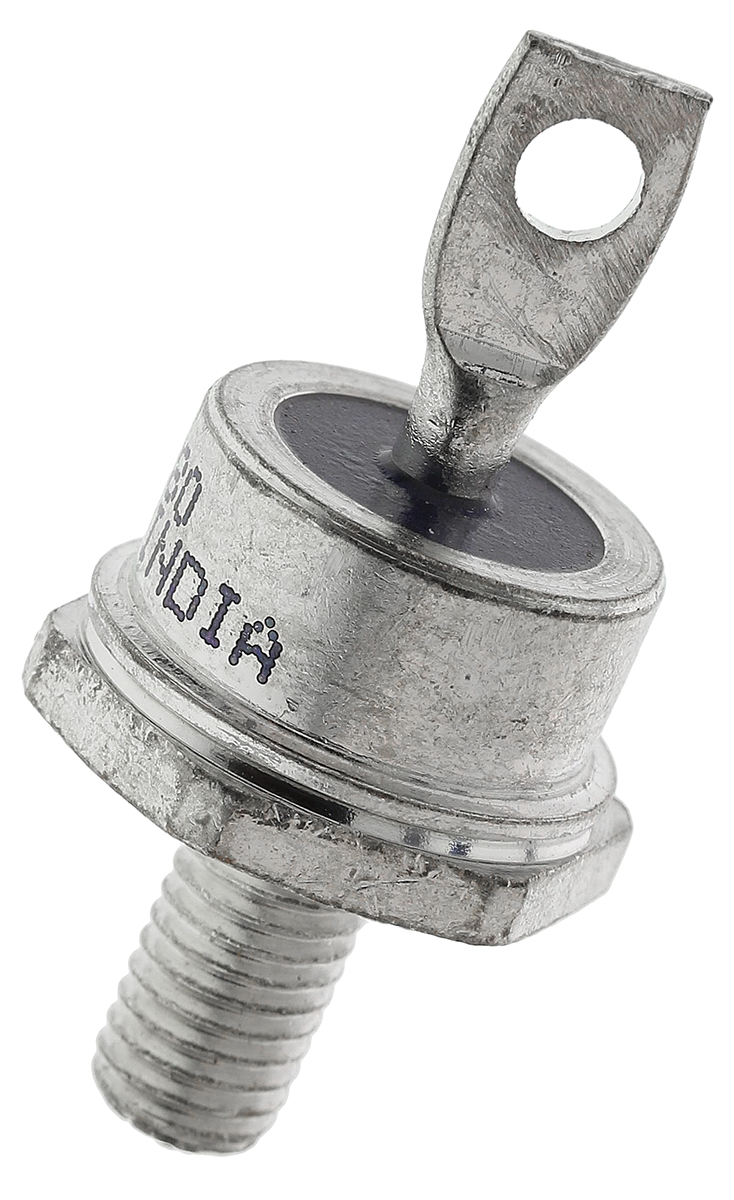

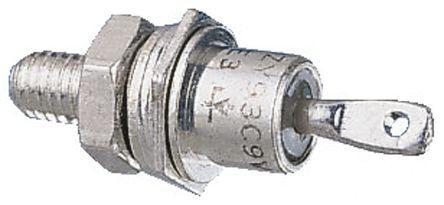

Vishay VS-85HFR80 Thread Mount Fast Recovery Diode, Stud Anode, 800V 85A, 2-Pin DO-203AB

VS-85HFR80 Vishay Thread Mount Fast Recovery Diode, Stud Anode, 800V 85A, 2-Pin DO-203AB
VS-85HFR80
VS-85HFR80
ET14032040
ET14032040
Schottky Diodes & Rectifiers
VS-85HFR80 Vishay Thread Mount Fast Recovery Diode, Stud Anode, 800V 85A, 2-Pin DO-203AB
Vishay

Product Information

Mounting Type:
Thread Mount
Diode Technology:
Silicon Junction
Maximum Continuous Forward Current:
85A
Peak Reverse Recovery Time:
200 ns, 500 ns
Peak Non-Repetitive Forward Surge Current:
1.4kA
Maximum Forward Voltage Drop:
1.75V
Height:
17.35mm
Peak Reverse Current:
20mA
Rectifier Type:
Fast Recovery
Length:
36.5mm
Package Type:
DO-203AB
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Diode Type:
Silicon Junction
Maximum Operating Temperature:
+125 °C
Diode Configuration:
Stud Anode
Pin Count:
2
Peak Reverse Repetitive Voltage:
800V
RoHs Compliant
Checking for live stock

This is Thread Mount Fast Recovery Diode Stud Anode 800V 85A 2-Pin DO-203AB manufactured by Vishay. The manufacturer part number is VS-85HFR80. The product is available in thread mount configuration. The product utilizes silicon junction diode technology. Furthermore, its maximum continuous forward current constitutes 85a. Moreover, it has a peak reverse recovery time about 200 ns, 500 ns . Moreover, a bespoke product has 1.4ka peak non-repetitive forward surge current. It features 1.75v of maximum forward voltage drop. In addition, the height is 17.35mm. It has a typical 20ma peak reverse current . This fast recovery product is highly suited for various professionals in various settings. Its accurate length is 36.5mm. The package is a sort of do-203ab. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It is designed with a silicon junction diode. It has a maximum operating temperature of +125 °c. The diode features a stud anode configuration. It contains 2 pins. While having the peak reverse repetitive 800v.
