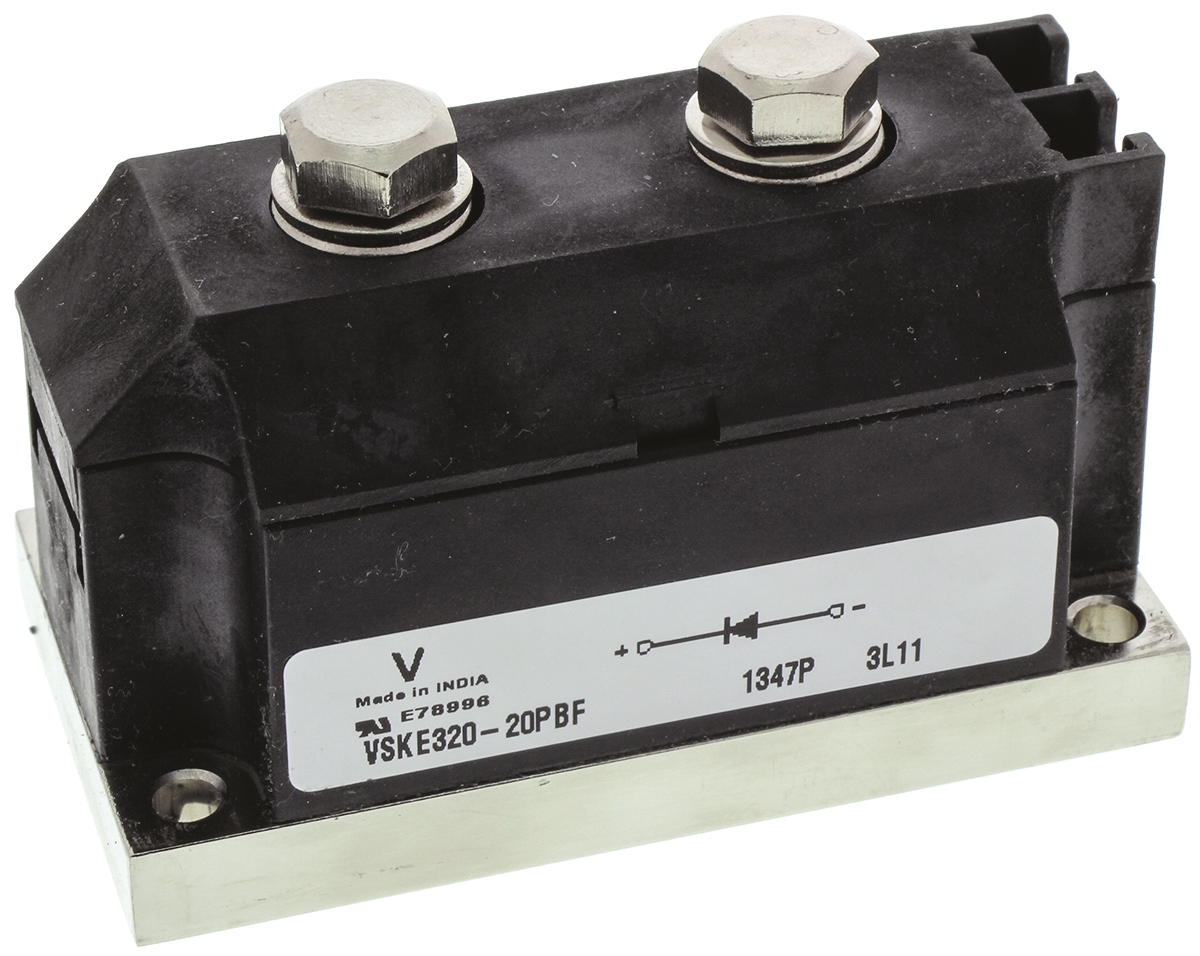

Vishay VS-VSKE320-20PBF High Voltage Diode Module, 2000V 320A, 2-Pin MAGN-A-PAK

VS-VSKE320-20PBF Vishay High Voltage Diode Module, 2000V 320A, 2-Pin MAGN-A-PAK
VS-VSKE320-20PBF
VS-VSKE320-20PBF Vishay High Voltage Diode Module, 2000V 320A, 2-Pin MAGN-A-PAK
Vishay

Product Information

Automotive Standard:
No
Diameter:
5.5 mm
Peak Reverse Current Ir:
50mA
Maximum Operating Temperature:
150°C
Rectifier Type:
Recovery
Series:
VS-VSK
Peak Reverse Repetitive Voltage Vrrm:
2000V
Maximum Continuous Forward Current If:
320A
Height:
52mm
Width:
50 mm
Length:
115mm
Package Type:
MAGN-A-PAK
Minimum Operating Temperature:
-40°C
Maximum Forward Voltage Vf:
1.28V
Standards/Approvals:
UL Approved File E78996
Peak Non-Repetitive Forward Surge Current Ifsm:
10110A
Product Type:
Diode
Diode Configuration:
Single
Pin Count:
2
Mount Type:
Panel
RoHs Compliant
Checking for live stock

This is High Voltage Diode Module 2000V 320A 2-Pin MAGN-A-PAK manufactured by Vishay. The manufacturer part number is VS-VSKE320-20PBF. The product complies with automotive standard - no. Its diameter is 5.5 mm. It has a maximum operating temperature of 150°c. This recovery product is highly suited for various professionals in various settings. The product vs-vsk, is a highly preferred choice for users. In addition, the height is 52mm. Furthermore, the product is 50 mm wide. Its accurate length is 115mm. The package is a sort of magn-a-pak. Whereas, the minimum operating temperature of the product is -40°c. diode is a versatile product designed to provide user-defined applications. The diode features a single configuration. It contains 2 pins. It has a panel type mount .
