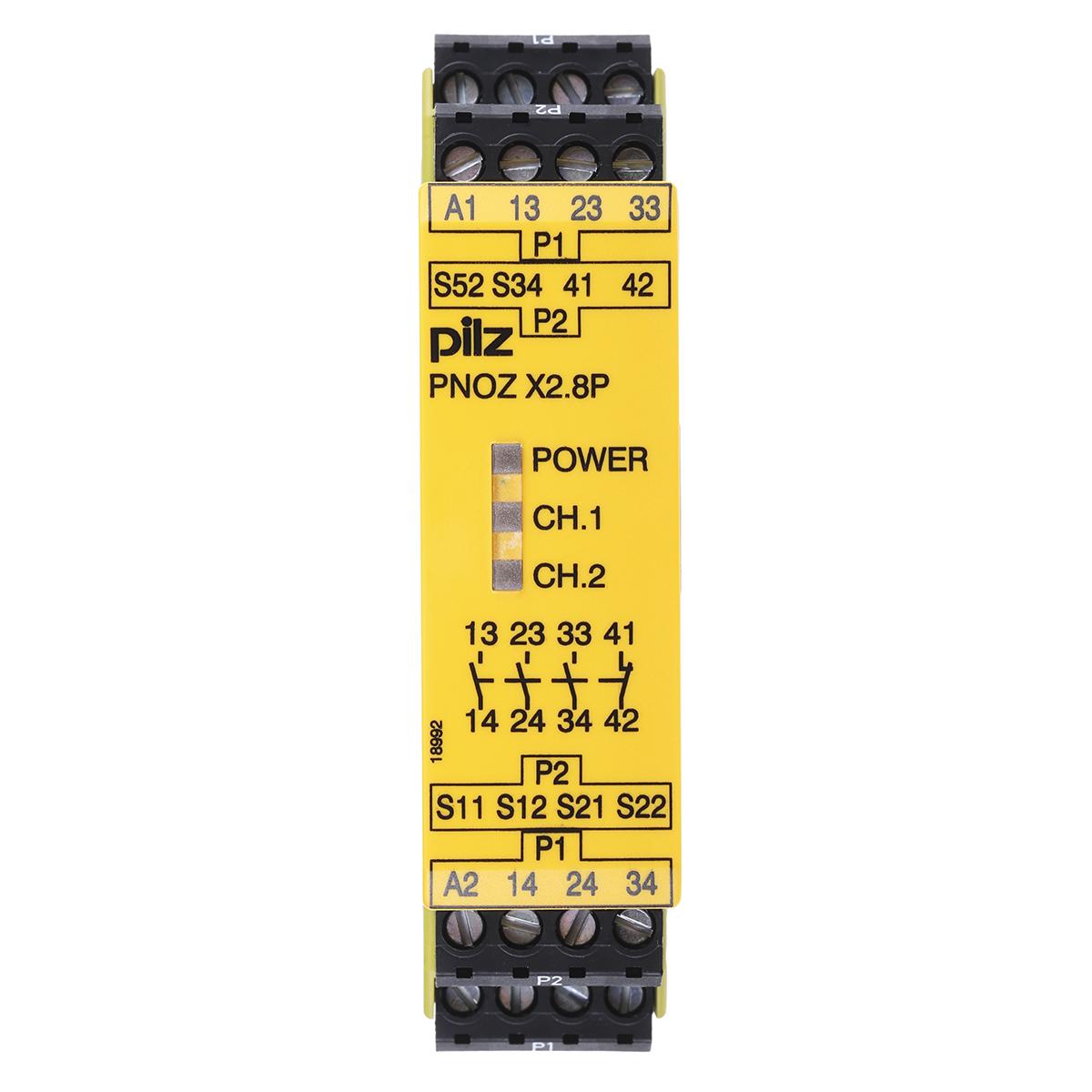

Pilz 24 → 240 V ac/dc Safety Relay Single or Dual Channel with 3 Safety Contacts and 1 Auxilary Contact

Enrgtech Part No: ET17053055
|
Manufacturer Part No:
777302
|
Manufacturer: Pilz

777302 Pilz 24 → 240 V ac/dc Safety Relay Single or Dual Channel with 3 Safety Contacts and 1 Auxilary Contact

Product Information

Function:

Emergency Stop

SIL IEC 61508:

Reset Method:

Manual

Safety Contacts:

PL ISO 13849-1:

Performance Level:

Series:

PNOZ X2.8P

Length:

94mm

Width:

22.5mm

Depth:

121mm

Number of Channels:

1, 2

Supply Voltage:

24 → 240V ac/dc

Checking for live stock

Safeguard your machinery and personnel with the Pilz Safety Relay (777302)—a robust, flexible safety interface engineered for critical stop-control applications. Rated for 24 → 240 V AC/DC supply, this compact relay supports single or dual channel configurations with three safety contacts and one auxiliary contact, offering dependable emergency stop performance. Built to meet exacting safety standards, SIL 3, Performance Level e (PL e), ISO 13849-1 Category 3, it integrates seamlessly into industrial safety circuits while ensuring maximum fault tolerance. Sized for compact DIN-rail occupancy, it combines technical precision with installation convenience.

Why Buy the Pilz 777302 PNOZ X2.8P Safety Relay?

When safety is non-negotiable, the 777302 stands out. With certifications such as SIL 3 and PL e (ISO 13849-1 Category 3), it delivers elite-level protection against faults during emergency stop scenarios. Pilz’s reputation for precision engineering ensures dependable performance and seamless integration into complex safety systems. The relay’s versatile channel configuration and compact DIN-rail design minimise panel footprint while maximising safety coverage. Its manual reset mode offers control over system recovery, reducing the risk of unintended restarts.

Special Features:

Supports 24–240 V AC/DC supply, wide voltage compatibility
Single or dual channel design, flexible configuration
Three safety contacts + one auxiliary contact, for comprehensive safety and status signalling
Meets SIL IEC 61508 level 3 and PL e, ISO 13849-1 Category 3, top safety standards compliance
Compact DIN-rail profile (94 × 22.5 × 121 mm), space-efficient installation
Manual reset method, controlled, safe restart after a fault.

Product Change Notification(Technical Reference)

BG 03226(Technical Reference)

UL APPROVAL E153882(Technical Reference)

PNOZ X2.8P Safety Relay(Technical Reference)

20954-04 Instruction Sheet(Technical Reference)

UL LISTING FOR CANADA E153882(Technical Reference)

Machine Guarding and Safety Range Overview(Technical Reference)

CCC Certificate(Technical Reference)
