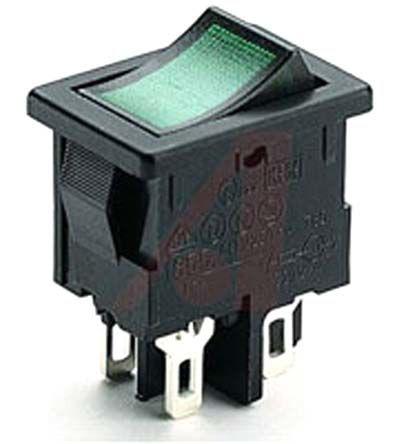

Marquardt Illuminated DPST, On-(Off) Rocker Switch Panel

1855-1122 Marquardt Illuminated DPST, On-(Off) Rocker Switch Panel
Marquardt

Product Information

Actuator Shape:
Rectangular
Contact Resistance:
<100mΩ
Panel Cut Out Height:
12.9mm
Actuator Colour:
Green
Illuminated:
Yes
Mounting Type:
Panel Mount
IP Rating:
IP40
Contact Current Rating:
6 A
Minimum Operating Temperature:
-20 (Actuating Side) °C, -20 (Terminal Side) °C
Operating Temperature Range:
-20 → +55 (Actuating Side) °C, -20 → +85 (Terminal Side) °C
Panel Cut Out Size:
19.8 x 12.9mm
Contact Configuration:
Double Pole Single Throw (DPST)
Case Material:
Polyamide
Panel Cut Out Width:
19.8mm
AC Voltage Rating:
125V
Mechanical Life:
50000Operations
Switch Operation:
Momentary
Maximum Operating Temperature:
+55 (Actuating Side) °C, +85 (Terminal Side) °C
Terminal Type:
Quick Connect
Contact Material:
Silver
RoHs Compliant
Checking for live stock

This is Illuminated DPST On-(Off) Rocker Switch Panel manufactured by Marquardt. The manufacturer part number is 1855.1122. It is designed with an adorable rectangular shape actuator . It features a <100mω contact resistance. Its panel cut out is 12.9mm in height . The actuator has an adorable green colour. Illumination Option yes. The product is available in panel mount configuration. It is IP rated with ip40. The rated contact current is 6 a. Whereas, the minimum operating temperature of the product is -20 (actuating side) °c, -20 (terminal side) °c. The product has -20 → +55 (actuating side) °c, -20 → +85 (terminal side) °c of operating temperature range. The panel cut out size includes 19.8 x 12.9mm. The contact is equipped with double pole single throw (dpst) configuration. The casing is constructed from highly stable polyamide material. Its panel cut out is 19.8mm wide . In addition, its AC voltage rating is 125v . The product also provide mechanical stability with 50000operations. It provides momentary switch operation. It has a maximum operating temperature of +55 (actuating side) °c, +85 (terminal side) °c. The terminal is a quick connect type. The product is made from sturdy silver materials.

pdf icon
Datasheet(Technical Reference)
